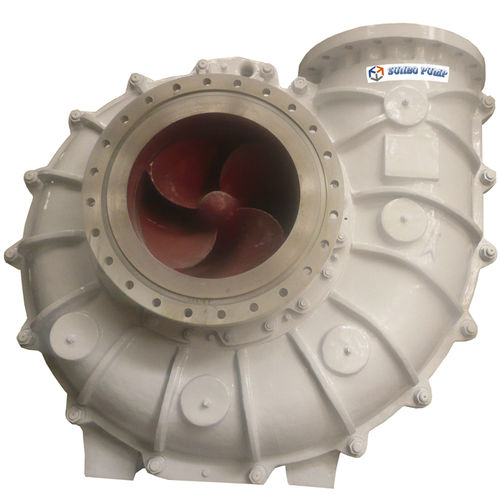

Slurry pump FGD series

centrifugalindustrialcirculation

FGD pump, full name is Flue Gas Desulphurization Pump. FGD pump is single stage, single-stage, axial suction, horizontal centrifugal slurry pump. It is mainly used as the circulating pump for absorption tower in FGD system in Power Plant. The wet parts are designed with the CFD Fluid Simulating Analysis Technology to ensure its high-efficiency operation. The position of impeller in the pump internal can be changed by adjusting the bearing assembly, which can ensure the pump to run efficiently. The pump design adopts back pull-out structure, which is easy to disassemble and without need to remove the inlet and outlet pipeline. Features: ◆ The Material of FGD pump mainly is duplex phase stainless white iron and natural rubber. The duplex phase stainless white iron also names as A49, 28% Cr, corrosion-resistant suitable for low pH (less than 4) duties, where erosive wear is also a problem. ◆ Wet parts of Cover plate, frame plate and joint plate are made of ductile cast iron to maximum the pressure-load bearing capacity. ◆ Special integrated mechanical seal design is suitable to Thermal Power Plant Fuel Gas Desulfurization processing. ◆ The bearing of pump end is double-row taper roller type, and the bearing of drive end is cylindrical roller type. Both are oil lubricated to extend service life. ◆ Long service life and easy maintenance. Specifications: ◆ Outlet: 12”-40” ◆ Capacity: 0-14500 m³/h ◆ Head: 0-32 m Applications: ◆ Chemical ◆ Sulfuric Acid ◆ Coal Industry ◆ Desulphurization Circulation ◆ Hydrochloric Acid ◆ Fertilizer Industry ◆ Slurries with smoke in Absorption
