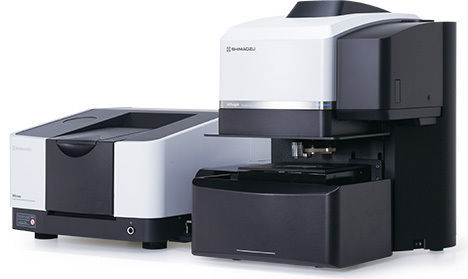

FTIR microscope AIRsight

for researchfor materials researchfor materials analysis

Overview
Infrared and Raman microscope combining FTIR and Raman spectroscopy to provide complementary molecular information. Automated system enables sequential FTIR and Raman measurements at the same sample location without moving the sample, streamlining workflows from sample observation to data analysis.

Examples of Problems Solved

• Contaminant components cannot be identified with an infrared microscope alone: the contaminant was identified based on both infrared and Raman measurements.
• Need to measure the same sample location with both infrared and Raman: the system enables rapid measurement of the same location without moving the sample.
• Target area too small for infrared measurement alone: Raman allows targeting and measuring smaller areas.
• Detailed analysis of both organic and inorganic components is required: combining FTIR and Raman enables comprehensive material analysis.

Features

• FTIR and Raman spectra can be measured without moving the sample.
• Unified software for measurement and analysis of both FTIR and Raman spectra.
• Provides both organic and inorganic material information with one instrument.

Videos

• AIRsight — Overview video describing combined infrared and Raman capabilities.
• Infrared and Raman Microscope AIRsight [Basic Usage] — Video showing basic measurement procedures for IR and Raman.

Downloads

• AIRsight - Infrared/Raman Microscope (brochure)
• AIRsight Infrared/Raman Microscope - For Researchers (brochure)
• AIRsight Infographics (PDF)
• FTIR Series and Infrared/Raman Microscope Accessories (brochure)

Applications (Documents Table)
Documents | Creation Date
Multifaceted Spectrophotometric Analysis of Vitamins and Vitamin-like Substances [PDF / 664.62KB] | 2025-12-02
Deterioration Evaluation of Lithium-Ion Battery Components Using Infrared/Raman Microscope and Airtight Cells [PDF / 471.08KB] | 2025-11-11
Multifaceted Evaluation of Changes in Physical Properties of Recycled Plastics by Advanced Recycling Process and Influencing Microstructural Changes (Part 3): Example of Application to Recycled Polypropylene Derived from Automotive Offcuts without Filler [PDF / 902.68KB] | 2025-07-22

Characteristics / Technical specifications

• Product name: AIRsight
• Brand: Shimadzu
• Integrated analytical methods: Infrared spectroscopy (FTIR) and Raman spectroscopy
• Capability to measure both FTIR and Raman spectra at the same sample location without moving the sample
• Unified software for measurement and analysis of both FTIR and Raman spectra
• Designed to obtain both organic and inorganic material information
• Intended for research use only (not for diagnostic procedures)
