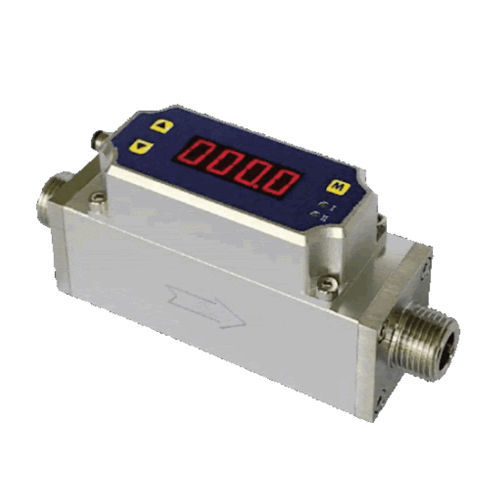

Mass flow meter MF4700 series

for gasRS485analog output

MF4700 series is capable of metering the precise gas consumption, and ready for wired or wireless data transmission for IoT. MF4700 series mass flow meters are designed for general purpose flow metering and control applications and are made with Siargo's proprietary MEMS mass flow sensing technology and smart electronic circuitry. The meters directly measure mass flow with a very low pressure loss. It is a replica of the MF4000 but with a higher pressure rating, excellent for industrial process monitoring with remote data. The current models can be readily applied to industrial gas process and control, gas; and other applications in laboratory and test benches MF4700 can measure a flow up to 300 SLPM. The connectors can be fully customized. Specifications Power supply 8~24 (50mA) Vdc Output LED / RS485 / analog 0.5~4.5Vdc Humidity <95 (no condensation) %RH Pin-out CD R-5, 5 pin Calibration Air @ 20°C, 101.325 kPa Mechanical NPT or BSPT
