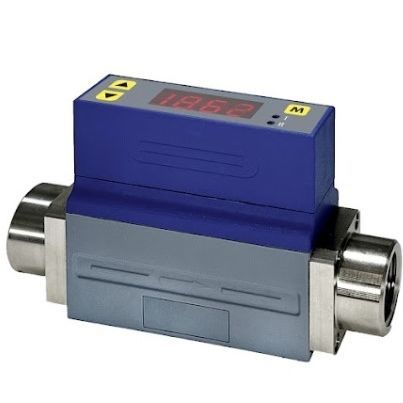

Mass flow meter MF3000

for gas4-20 mARS485

MF3000 series mass flow meters are designed for general-purpose precise gas metering, processing monitoring, and/or control. The products have enhanced flow conditioning which allows more flexibility during installation. It can be applied for pneumatic control, process automation, and other industrial applications where the pressure drop is not a critical parameter. The products are designed with an easy change of mechanical connectors. Specification: Range: 0 ~ 2, 5, 10, 20, 50 0 ~ 100, 200 0 ~ 500, 1000, 1500 SLPM Accuracy: ±(2.5+0.5FS) % Repeatability: 1.0 % Response time: 10 msec Power supply: 8 ~ 24 (50mA) Vdc Output 1: (digital output)RS485 Modbus or I2C Output 2 & 3: Analog 4 ~ 20 mA, 1 ~ 5 Vdc, NPN, PNP Maximum pressure: 0.8 MPa Temperature: -10 ~ +55 °C Humidity: <95 (no condensation) %RH Mechanical connection: BSPT 1/4”-male, 4 / 6 / 8mm One-touch, or L connector BSPT 1/2”-female Pinout: 6 pins, HRS:DF51K-6P-2DS Calibration: Air @ 20°C, 101.325 kPa Storage temperature: -20 ~ +70 °C Compatibility: RoHS, REACH, CE
