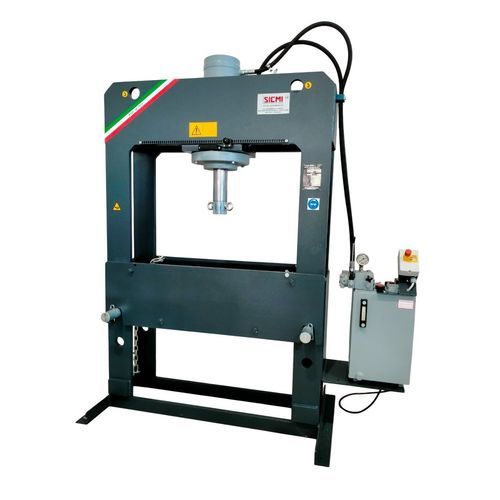

Hydraulic press PSS 70 L

electro-hydraulicformingstamping

The PSS-L electro-hydraulic workshop press is the ideal machine for a wide variety of mechanical processes: it is suitable for straightening sheet metal, assembling and disassembling bearings, bolts, and washers, and is perfect for stamping and material deformation operations. The PSS-L press is equipped with a hydraulic piston with a stroke of 350 mm and a two-speed control unit: a rapid descent speed (under 10 mm/sec) and a working speed for optimal control of the machining operations on the piece. The heart of the PSS-L press is its monoblock steel frame that guarantees exceptional resistance and the ability to absorb even the highest pressures. This robustness makes it suitable for intensive use in maintenance and repair workshops, as well as in the most demanding industrial plants. The large front opening facilitates the positioning of long or wide workpieces, improving operating efficiency. The hollow worktable of the PSS-L allows for machining at heights, offering greater flexibility. In addition, a work support table is available as an optional equipment. The lifting of the work platform is managed by a chain system connected to the hydraulic cylinder, and the locking occurs via sturdy steel tubes, which eliminate any unwanted movement, ensuring stability and safety. The PSS-L electro-hydraulic workshop press is also available in the version with a mobile cylinder with transverse movement. This feature is extremely useful, allowing you to move the cylinder laterally and position it precisely on the exact point of the piece to be worked, without having to move the entire material. This optimizes time and increases the precision of your operations. A handle is positioned on the flange of the cylinder and the piston is moved manually. Once the optimal position has been found, the cylinder can be blocked by means of a special knob that slides along a pre-drilled metal grid. As an optional alternative, the cylinder can be moved transversally using a handwheel. The flange slides along a rack and can be stopped at any point. This variant makes piston movement much easier and more precise than the standard handle version. The PSS-L electro-hydraulic press is available in a wide range of powers, from 20 to 150 tons, to meet every need. Available Accessories: - Cylinder stroke adjustment: with microswitches for precise adjustment of the maximum lifting and lowering height of the hydraulic cylinder. - Worktop: for additional support during work. - V-shaped prisms: ideal for supporting and working on profiles and rounds. - Cylinder movement via handwheel: available for versions with mobile cylinder, replaces the standard version of piston movement with handle. - Standard accessories and optional accessories available for customization. - Monoblock steel frame for high resistance and durability. - Hydraulic piston stroke: 350 mm. - Double speed hydraulic power unit: rapid descent (<10 mm/sec) and working speed. - Large front opening for easy positioning of workpieces. - Hollow worktable for machining at heights. - Chain system for platform lifting, steel tube locking for stability. - Mobile cylinder version with transverse movement (manual handle or handwheel). - Available in power range: 20 to 150 tons. Technical Specifications / Features: - Type: Electro-hydraulic workshop press - Model: PSS-L - Cylinder stroke: 350 mm - Double speed: rapid descent (<10 mm/sec), working speed - Frame: Monoblock steel - Front opening: Large, for long/wide workpieces - Worktable: Hollow, optional support table available - Platform lifting: Chain system - Locking: Steel tubes - Mobile cylinder: Optional, with manual handle or handwheel - Power range: 20 to 150 tons - Accessories: Cylinder stroke adjustment, worktop, V-shaped prisms, cylinder movement via handwheel
