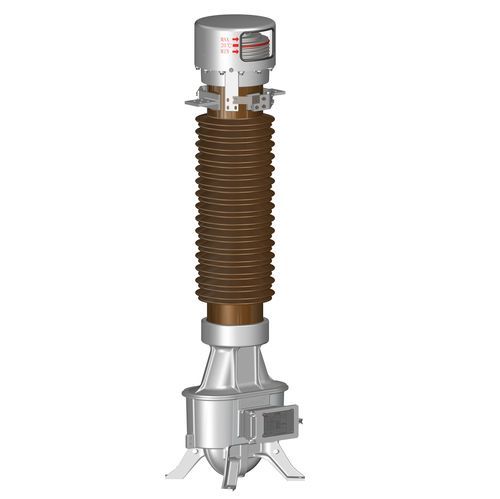

Transformer current transducer LBfixedACmedium-voltage
Add to favorites
Compare this product
Characteristics
- Technology
- transformer
- Mounting
- fixed
- Electrical characteristics
- AC, medium-voltage
- Other characteristics
- insulated
- Primary current
Max.: 8,000 A
Min.: 0.5 A
Description
Product overview
Key features
Technical specifications
Installation and characteristics
- LB type current transformer is designed for outdoor use with oil-paper insulation. The primary winding is U-type (hairpin). The tank is bottom-mounted. LB is intended for large-current systems and provides stable dynamic and thermal behaviour and high insulation performance.
Key features
- Electrical performance: suitable for large current systems; stable under dynamic and thermal stress.
- Mechanical performance: seismic compliance with ETG1020 and IEEE‑693 regional standards.
- Insulation and sealing: high sealing performance to prevent leakage and corrosion; designed for straightforward operation and maintenance.
Technical specifications
- Seismic standard: ETG1020 / IEEE 693
- Altitude: ≤1000 m (higher altitude customizable)
- Ambient temperature: -60 ℃ to 50 ℃
- Frequency: 50 / 60 Hz
- Accuracy classes (measurement): 0.2S, 0.2, 0.5S, 0.5, 1.0; (protection): 5P, 10P
- Secondary current: 1 A, 5 A
- Primary current range: 0.5 A – 8000 A
- Rated system voltage: 27.5 kV – 220 kV
Installation and characteristics
- Type: LB (outdoor, oil-paper insulated current transformer)
- Primary winding form: U-type (hairpin)
- Installation: tank fixed at bottom of enclosure
- Designed for large current systems with high dynamic and thermal stability
