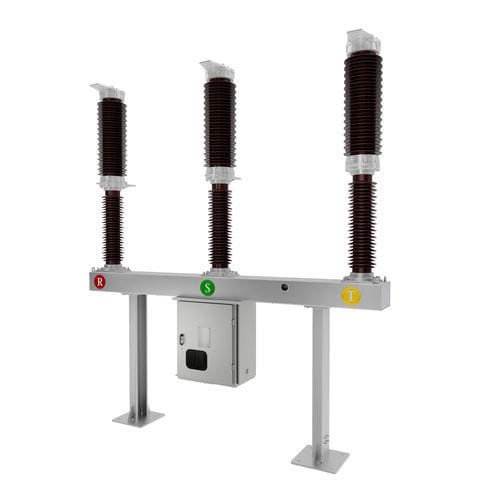

SF6 circuit breaker LW36

live-tankhigh-voltageoutdoor

LW36 Outdoor High-voltage AC SF₆ Circuit Breaker features strong environmental adaptability, high reliability, and maintenance-free operation. Rated voltage covers 40.5-170kV, providing three-pole intertripping & pole-discrepancy operation solutions. Suitable for high-voltage power transmission and distribution applications such as substations and distribution networks. Superior interrupting performance Reliable mechanical performance Excellent sealing protection Exceptional environmental adaptability Features 01 Superior interrupting performance Employs self-energy & assisted compression arc-extinguishing technology. Delivers robust interrupting capability across the entire series (up to 50kA), suitable for diverse complex operating conditions. 02 Reliable mechanical performance Utilizes a new integrated die-cast aluminum base spring operating mechanism. Compact structural design ensures stable output performance, high reliability, and maintenance-free operation. Mechanical life meets M2 class requirements. 03 Excellent sealing protection Adopts diaphragm sealing structure. SF₆ gas leakage rate ≤0.05% per year. 04 Exceptional environmental adaptability Provides low-temperature application solutions with pure SF₆ gas or SF₆ gas mixtures. Capable of withstanding -50℃ extreme cold, high altitude, and other harsh environments.
