Infrared inspection system Super5000

video visioncameramulti-camera

Overview

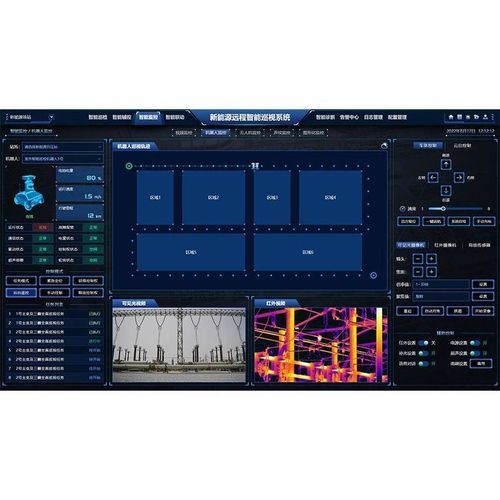

Remote control of substation robots, high-definition video monitoring, infrared temperature measurement and image-recognition-based automatic inspection of transformers, switchgear, reactors and related equipment. The system automatically identifies equipment defects, generates alarms, supports task analysis, linkage control, 3D patrol and maintenance management, enabling remote inspection across multiple substations.

Key features

• Flexible hybrid unified architecture: wide-area service bus; high openness and extensibility; integrated Artificial Intelligence (AI) platform; integrated 3D visualization/VR engine; lightweight containers for simplified deployment and maintenance.
• Scalable hardware requirements: modular hardware configuration with smooth upgrades and phased deployment; supports cost-effective or locally controllable hardware and compatibility during transition periods of centralized control stations.
• Modular functional design: modular deployment to quickly build and expand new applications and adapt to different professional needs; featured applications include AI-based equipment health diagnosis and 3D digital twin of reality.
• Proven integration capabilities: leading integration of primary and secondary systems; professional AI R&D team; extensive practical deployment for monitoring, auxiliary control, inspection, diagnosis and digital twin engineering.

Technical specifications

• Important indicators / parameters: detailed below.
• CPU: ≥ 2 GHz main frequency, ≥ 32 cores.
• Memory: ≥ 128 GB.
• Operating system: Linux or domestically controllable operating system.
• Power: dual hot-swappable redundant power supply.
• Maximum concurrent users per single server: ≥ 50.
• Supported online users: ≥ 1000.
• Channels supported by a single media service: ≥ 200 channels.
• Number of cameras supported: ≥ 8,000 cameras.
• Communication protocols: DL/T 860; GB/T 60870-5-104.

Model family / Additional technical details

• Model family: Super5000 remote inspection and intelligent operation system.
• CPU requirement: ≥ 2 GHz, ≥ 32 cores.
• Memory requirement: ≥ 128 GB.
• OS: Linux or domestically controllable OS.
• Power: dual hot-pluggable redundant PSU.
• Single server concurrent users: ≥ 50; supported online users: ≥ 1000.
• Media service channels: ≥ 200; camera access: ≥ 8,000.
• Supported protocols: DL/T 860; GB/T 60870-5-104.
