Power transformer
immersedsubstationhigh-voltage

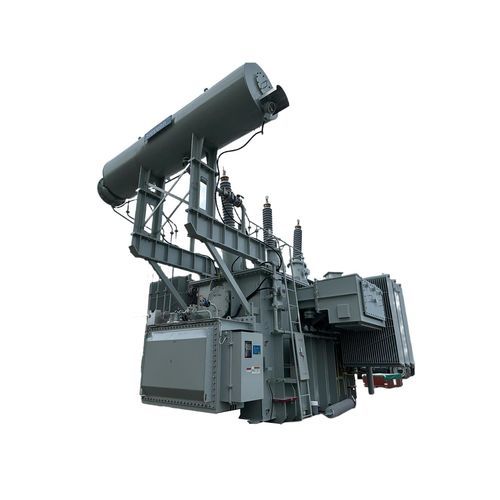

Power transformer - Sieyuan Electric Co., Ltd - immersed / substation / high-voltage

Power transformer - Sieyuan Electric Co., Ltd - immersed / substation / high-voltage - image - 2

Add to favorites

Compare this product

Characteristics

Type

power

Configuration

immersed

Applications

substation

Electrical characteristics

high-voltage

Other characteristics

integrated

Output power kVA

Max.: 1,000,000 kVA
(1,359,621.155161 hp)

Min.: 0 kVA
(0 hp)

Primary voltage

Max.: 750 kV

Min.: 0 kV

Secondary voltage

Max.: 1,000 mV

Min.: 0 mV

Description

Product Overview
Sieyuan oil-immersed power transformer is designed and manufactured with Toshiba's core technology, covering voltage ratings up to 750kV. It features low losses, low noise, minimal partial discharge, and high short-circuit impedance, making it suitable for diverse installation environments and demanding operating conditions.

Key Features

Reliable design: Incorporates Toshiba (Japan) core technology with strict quality control throughout the process to ensure long-term stable operation.
Performance: Low loss, low noise, low partial discharge, and high short-circuit resistance.
Customized solutions: Professional tailored solutions to meet diverse environmental and operational requirements.
Standards: IEEE (noted on product information).

Technical Specifications

Voltage level: Up to 750kV
Capacity: Up to 1000MVA
Arrangement type of radiator: Integrated, split
Cooling medium: Mineral oil, ester oil
Insulation level of neutral: Full, graded

Characteristics / technical specifications

Voltage rating up to 750 kV
Capacity up to 1000 MVA
Radiator arrangement: integrated or split options
Cooling media supported: mineral oil and ester oil
Neutral insulation levels: full or graded
Design focus: low losses, low noise, minimal partial discharge, high short-circuit impedance
