Vacuum circuit breaker ZW20-12
high-voltagethree-phasedistribution

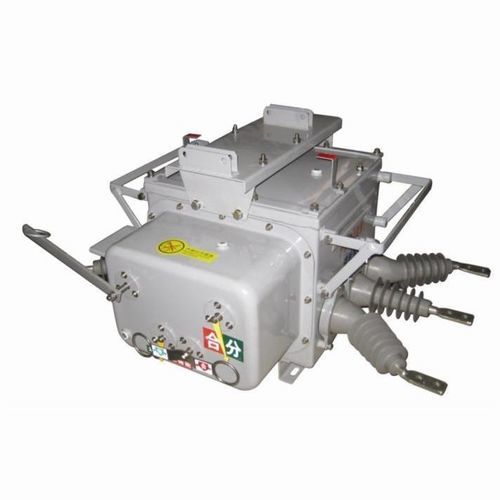

Vacuum circuit breaker - ZW20-12 - Sieyuan Electric Co., Ltd - high-voltage / three-phase / distribution
Vacuum circuit breaker - ZW20-12 - Sieyuan Electric Co., Ltd - high-voltage / three-phase / distribution
Add to favorites
Compare this product

Characteristics

Type
vacuum
Electrical characteristics
high-voltage, three-phase
Applications
distribution, for overhead lines
Number of poles
3-pole
Other characteristics
outdoor, pole-mounted
Primary current

Min.: 0 A

Max.: 500,000 A

VAC

12,000 V

Description

Overview
Type ZW20-12 outdoor pole-mounted high-voltage vacuum circuit breaker is a 12 kV three-phase AC, 50 Hz outdoor high-voltage switchgear. It is designed to switch load current, overload current and short-circuit current in power distribution networks.

Key Features
  • Vacuum interrupter for reliable interruption
  • Low operating noise
  • Low loss and low temperature rise


Applications
  • Switching load, overload and short-circuit currents in outdoor electrical power systems and distribution lines


Technical Specifications
  • Model series: ZW20 series
  • Rated voltage: 12 kV
  • Phase: Three-phase AC
  • Frequency: 50 Hz
  • Mounting: Outdoor pole-mounted
  • Breaking medium: Vacuum
  • Main functions: switch load, overload and short-circuit currents
