flow indicator / process / temperature / status
SUR-94

{{requestButtons}}

Characteristics

  • Measured value:

    flow, process, temperature, status, tilt, universal, current, torque, rate, voltage, humidity, speed, pressure, signal level, force

  • Display:

    4-digit, LCD

  • Type:

    panel-mount

  • Other characteristics:

    4-20 mA, compact, RS-485, easy to install, precision, high-accuracy, analog input, with counting function, Modbus

  • Applications:

    for machine tools, for strain gauges, for sensors, for marine applications, for anemometers, for milling machines, for the food industry, for refrigeration circuits, for pumps, for logistics

Description

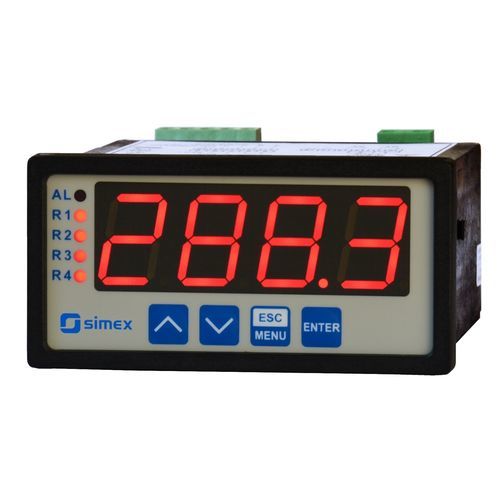

The SUR-94 meter supplied with one all inclusive input, types like 0/4-20ma, 0-10v, 0-150 mv, Pt 100/500/1000 or TC (K, S, J, T, N, R, B, E). Throughout the measurement process of the product only single type of input is accessible. Temperature of chilly finishes is repaid consequently. RTD and TC inputs are completely linearized. The gadget with current or voltage data works in the accompanying modes: straight, root, square and client characterized (max. 20 focuses). Result is demonstrated on 4-digit LED presentation.

The gadget is furnished with RS-485/Modbus RTU correspondence interface and sensor supply yield. 2 or 4 hand-off (or OC) yields make it conceivable to change the level of the measured indicator. These yields might be controlled as per one or two edge values. Alternatively SUR-94 with two transfers yields could be furnished with dynamic current yield. The gadget might be utilized for controlling and regulation of methods need corresponding and edge control.
