Automatic coiler WPO 630H2
for wire

automatic coiler
automatic coiler
automatic coiler
Add to favorites
Compare this product


Characteristics

Operation
automatic
Applications
for wire

Description

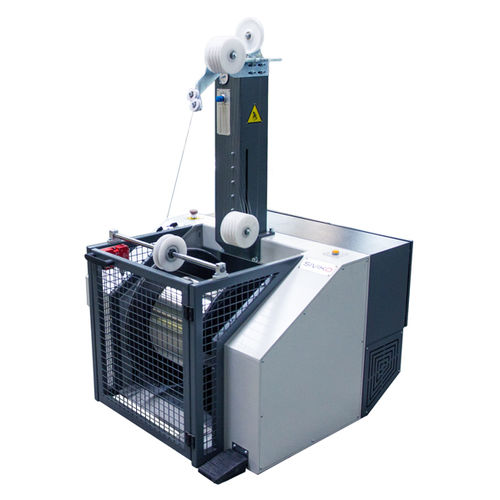

SIVIKO WPO 630H2 is an Industry 4.0 enabled, automated wire pay-off machine, which offers high-speed, reliable product quality and increased cost efficiency. It can work with individual wires with 0,16 … 0,80 mm diameter and wire bundles with 0,18 … 0,95 mm diameter. It is the perfect fit for bobbin winders, take-up machines etc. Design •Secure two-sided mounting and variety of sensors ensure maximum productivity and safety in operations •Solid frame welded construction with compact design •INDUSTRY 4.0 enabled, provides performance, energy consumption and status data through Modbus to external systems and devices Quality •Keeps wire tension constant by precise pneumatic wire tension control, dynamic motor control and PID controlled dancer •Twist free pay-off of individual wires and wire bundles •Automatically stops when wire breaks Productivity •Normal working speed up to 850 m/min, with a ramp-up time down to 10 s •Quick reel change via pneumatically actuated pintle •Easy change of reel type with additional tools •Wire pay-off path direction adjustment up to 90° Cost Efficiency •Reel loading without any auxiliary devices as it has embedded electrical gear motor lift system •Lower energy consumption through high motor efficiency level (IE3) and variable-frequency drive (VFD) •Cost-efficient maintenance due to durable design and availability of maintenance data Safety •Safety fence and a lockable door that makes the reel inaccessible by an accident during operations •Reliable safety relay to check and monitor the safety system •Sensor and algorithms that stop the machine immediately if there is a change of grip or position of the reel

VIDEO
