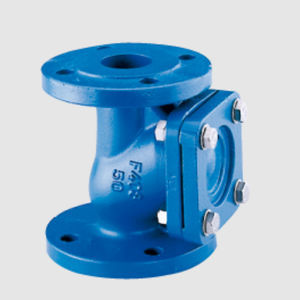

Disc check valve 308for waterfemale-femaleflange
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Fluid
- for water
- Body
- female-female, flange
- Material
- steel, cast iron, aluminum
- DN
250 mm, 300 mm, 350 mm
(9.843 in, 11.811 in, 13.78 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)
Description
viscous, loaded or thick liquids
PRESSURE PFA/PS in bar θ 80°
CASING : 318 : GJS ductile iron epoxy coated308 : GJS ductile iron epoxy coated
STRAINER : galvanised steel
Seal : NBR
BALL :Aluminium, NBR coated (DN50 to 100) Cast iron, NBR coated ( DN >)
