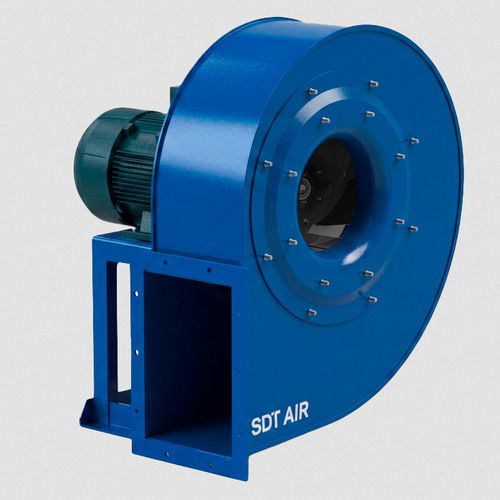

High-temperature fan MOVEX-P

ATEXlow-noisecentrifugal

Overview
Medium-pressure centrifugal fan with single inlet and heavy-duty construction; casing and impeller manufactured in steel sheet. Designed for conveying clean to very dusty air. The MOVEX-P series by SDT Air is intended for industrial systems requiring a constant airflow at medium-pressure conditions. System 4 configuration: impeller mounted directly on the motor shaft and motor supported on a rigid base frame to ensure permanent alignment, maximum power transmission and reduced maintenance.

Applications

• Suction and conveying of clean to dust-laden air, including sawdust, wood chips, shavings and non-fibrous granular materials
• Filtration systems and cyclones
• Thermal drying processes
• Localized extraction and spot ventilation
• Pneumatic conveying
• Cooling of industrial machinery and equipment

Key features

• Dynamic stability: Front support foot to minimize vibrations; optional up to size 500, standard from size 560
• Backward-curved impeller: Self-cleaning backward-curved blades; statically and dynamically balanced for low noise with particle-laden air
• Mounting versatility: Adjustable on site up to size 630; for sizes 710–1000 orientation is defined at the factory to ensure assembly integrity
• Robust construction: All ferrous parts in carbon steel; sizes up to 630 use high-precision lock-seamed joints; sizes from 630 use continuous welding for maximum structural rigidity
• Thermal execution: Standard rating up to 130 °C continuous; high-temperature executions available (cooling impeller, material selection and design solutions) allowing continuous operation up to 250 °C when configured appropriately
• Standard finish: Industrial coating suitable for non-aggressive industrial environments

Customization options

• Special materials: Stainless steel (AISI 304 / 316), Corten, Hardox for high abrasion resistance
• Finishes and protection: Heat-resistant coatings, hot-dip galvanizing, C4 / C5 coatings for saline or highly aggressive environments
• Special executions: High-temperature versions, inspection doors for cleaning, drain outlets, sealed or thermally insulated housings, non-sparking executions, ATEX-certified motors

Motorization and Efficiency

• TEFC motors: Totally enclosed motors with external ventilation for reliable operation in demanding industrial environments
• ErP compliance: IE3 (Premium) from 0.75 kW to 55 kW; IE4 (Super Premium) from 75 kW and above; IE2 for powers below 0.75 kW

Technical specifications

• Model: MOVEX-P series
• Brand: SDT Air
• Type: Medium-pressure centrifugal fan, single inlet
• Construction: Heavy-duty casing and impeller in steel sheet; ferrous parts in carbon steel
• Configuration: System 4 — impeller on motor shaft; motor on rigid base frame
• Impeller: Backward-curved, self-cleaning profile; statically and dynamically balanced
• Operating media: Clean to dust-laden or very dusty air (sawdust, wood chips, shavings, non-fibrous granules)
• Applications: Filtration, cyclones, thermal drying, localized extraction, pneumatic conveying, machinery cooling
• Mounting: Adjustable on site up to size 630; factory-defined orientation for sizes 710–1000
• Vibration control: Front support foot (optional/standard depending on size)
• Thermal rating: Standard up to 130 °C continuous; configured versions up to 250 °C
• Finish: Standard industrial coating; optional heat-resistant, hot-dip galvanizing, C4/C5 coatings
• Options: Inspection doors, drain outlets, sealed/insulated housings, non-sparking executions, ATEX motors
• Motors & efficiency: TEFC motors available; ErP compliance IE2 / IE3 / IE4 depending on power range
