High-performance fan Pressox

low-noisecentrifugalcooling

Overview

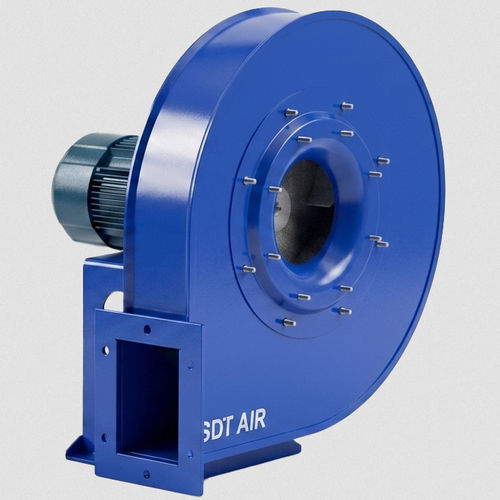

The Pressox series by SDT Air is a medium-pressure centrifugal fan with single inlet and heavy-duty construction, featuring a steel-sheet casing and impeller. It is engineered for clean to lightly dust-laden air and for industrial processes that demand high pressure at low to medium airflow rates. System 4 configuration: impeller mounted directly on the motor shaft with the motor supported on a rigid base frame to ensure permanent alignment, direct drive capability and reduced maintenance requirements.

Key features

• Medium-pressure centrifugal fan, single-inlet
• Heavy-duty casing and steel-sheet impeller
• Suitable for clean air and light dust loads
• System 4 configuration: impeller on motor shaft, motor on rigid base frame
• Belt drive from size 710; direct drive from size 1120

Typical applications

• Pneumatic conveying
• Extraction and localized extraction
• Clean air intake and air intake after filters/separators/cyclones
• Machinery cooling
• Material drying
• Industrial furnaces

Design and aerodynamic characteristics
The fan uses a backward-curved impeller with a self-cleaning blade profile, statically and dynamically balanced for quiet, efficient operation. Dynamic stability is enhanced by a front support foot to minimize vibrations. Mounting allows on-site orientation adjustment up to size 630; orientations for sizes 710–1000 are factory-set to ensure assembly integrity.

Construction, materials and finishes

• Standard construction: carbon steel for all ferrous parts, steel-sheet impeller and casing
• Assembly: high-precision crimping up to size 630; continuous welding from size 630 upwards for maximum structural rigidity
• Standard finish: industrial coating for non-aggressive environments; optional corrosion and heat-resistant treatments available

Thermal and special executions

• Standard continuous operation up to 130 °C
• High-temperature executions with cooling impeller, specific material selection and structural solutions for thermal expansion — continuous operation up to 250 °C possible
• Available special executions: stainless steel (AISI 304 / 316), Corten, Hardox, heat-resistant coatings, hot-dip galvanizing, C4/C5 coatings, sealed or insulated housings, anti-spark designs, inspection doors, drain outlets, ATEX-certified motors

Motorization and efficiency

• TEFC motors (totally enclosed, external ventilation) for industrial environments
• ErP compliance options: IE3 standard from 0.75 kW to 55 kW; IE4 from 75 kW upwards; IE2 for ratings below 0.75 kW

Technical specifications

• Product name: Pressox (SDT Air)
• Type: Medium-pressure centrifugal fan, single-inlet
• Design configuration: System 4 (impeller on motor shaft, motor on rigid base frame)
• Impeller: backward-curved blades, self-cleaning profile, statically and dynamically balanced
• Construction material: carbon steel standard; optional stainless steel, Corten, Hardox
• Mounting: adjustable on-site up to size 630; factory-set orientation for sizes 710–1000
• Drive: belt drive from size 710; direct drive from size 1120
• Operating temperature: standard continuous up to 130 °C; special executions up to 250 °C
• Finishes: industrial coating standard; optional heat-resistant coating, hot-dip galvanizing, C4/C5 coatings
• Options: inspection doors, drain outlets, sealed or insulated housings, anti-spark designs, ATEX motors
• Applications: pneumatic conveying, extraction, localized extraction, machinery cooling, material drying, industrial furnaces, air intake after filtration
