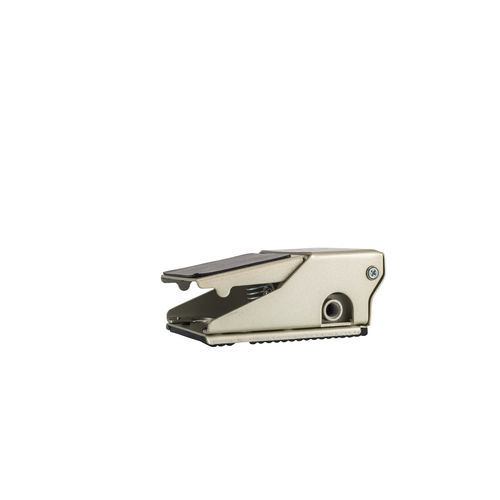

Pneumatic valve TG2 series

foot-operatedpedal-operatedpneumatically-operated

Overview
Industrial pneumatic foot pedal valves for hands-free control of machines and pneumatic tooling. Available in 3/2, 4/2 and 5/2 way configurations with BSP 1/4" connections. Lock and guard variants provide options for safety-critical installations and operator protection.

Key features

• 3/2, 4/2 and 5/2 way configurations
• BSP 1/4" connection
• Hands-free (foot-actuated) operation
• Lock and guard variants for enhanced operator safety
• Designed for industrial heavy-duty use

Available configurations

• TG23J-08 — 3/2 Way Foot Pedal Valve BSP 1/4" — Standard — £22.97
• TG24J-08 — 4/2 Way Foot Pedal Valve BSP 1/4" — Standard — £25.59
• TG25J-08 — 5/2 Way Foot Pedal Valve BSP 1/4" — Standard — £38.12
• TG25J-08L — 5/2 Way Foot Pedal Valve BSP 1/4" with Lock — £41.91
• TG25J-08G — 5/2 Way Foot Pedal Valve BSP 1/4" with Guard — £51.21
• TG25J-08LG — 5/2 Way Foot Pedal Valve BSP 1/4" with Lock & Guard — £59.13

Technical specifications

• Product family: Foot Pedal Valves (pneumatic)
• Manufacturer / Brand: SPAC Pneumatic
• Connection thread: BSP 1/4"
• Way types available: 3/2 Way, 4/2 Way, 5/2 Way
• Variants: Standard, Lock, Guard, Lock & Guard
• Industrial grade: Heavy-duty for safety-critical applications
• Operation: Hands-free (foot-actuated)
• Configurations listed (6): TG23J-08 (3/2), TG24J-08 (4/2), TG25J-08 (5/2), TG25J-08L (5/2 with Lock), TG25J-08G (5/2 with Guard), TG25J-08LG (5/2 with Lock & Guard)
• Example prices (GBP): from £22.97 to £59.13 depending on model and features
