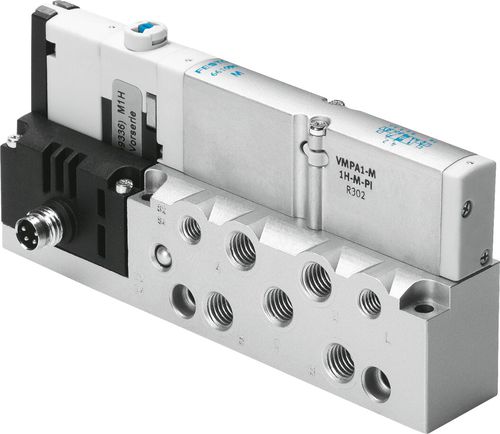

2/3-way solenoid valve VMPA series

direct-operatednormally opennormally closed

Overview
Festo VMPA series solenoid valves for pneumatic control. Available in 5/2-way and 3/2-way configurations with electrical actuation. Nominal flow ranges depend on model (140–840 l/min), making the series suitable for a range of industrial pneumatic applications.

Available products (selection)

• VMPA14-M1H-MSC-PI — VMPA14 — 5/2-way, single solenoid — 550–670 l/min — Electrical
• VMPA2-M1H-MSC-PI — VMPA2 — 5/2-way, single solenoid — 670–840 l/min — Electrical
• VMPA1-M1H-MSC-PI — VMPA1 — 5/2-way, single solenoid — 190 l/min — Electrical
• VMPA1-M1H-MU-PI — VMPA1 — 5/2-way, single solenoid — 140–190 l/min — Electrical
• VMPA1-M1H-HU-PI — VMPA1 — 2x3/2-way, open/closed, monostable — 140–190 l/min — Electrical
• VMPA1-M1H-NU-PI — VMPA1 — 2x3/2 open, monostable — 190 l/min — Electrical
• VMPA1-M1H-D-PI — VMPA1 — 2x2/2 closed, monostable — 230 l/min — Electrical
• VMPA1-M1H-DS-PI — VMPA1 — 2x2/2 closed, monostable — 230 l/min — Electrical
• VMPA1-M1H-D-S-M7-PI — VMPA1 — 2x2/2 closed, monostable (Port 1: M7) — 230 l/min — Electrical

Filter: Series

• VMPA1 (7)
• VMPA14 (1)
• VMPA2 (1)

Filter: Valve Function

• 2x2/2 closed monostable (3)
• 2x3/2 open monostable (1)
• 2x3/2-way, open/closed, monostable (1)
• 5/2-way, single solenoid (4)

Technical specifications

• Manufacturer: Festo
• Series: VMPA
• Valve functions: 5/2-way, 3/2-way variants; 2x2/2 and 2x3/2 monostable configurations
• Actuation: Electrical
• Nominal flow by model: 140–190 l/min, 190 l/min, 230 l/min, 550–670 l/min, 670–840 l/min
• Number of listed products: 9
• Typical part numbers: VMPA1-M1H-MSC-PI, VMPA2-M1H-MSC-PI, VMPA14-M1H-MSC-PI

Ordering & support

• Contact Festo or an authorized distributor for datasheets, CAD files and spare parts
• Custom variants, port options and mounting accessories may be available on request
• Consult product datasheets for electrical connection details and installation instructions
