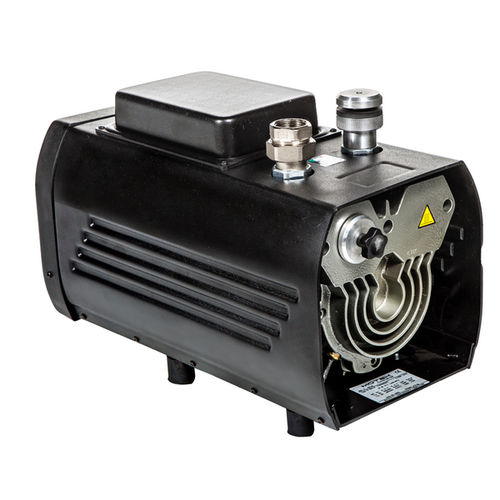

Rotary vane vacuum pump 16 S
drysingle-stagewater

rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
dry
Number of stages
single-stage
Applications
water, suction
Other characteristics
ATEX, cast iron
Ultimate vacuum

150 mbar
(2.18 psi)

Flow rate

17.1 m³/h, 20.5 m³/h
(603.88 ft³/h, 723.95 ft³/h)

Power

1.1 kW
(1.5 hp)

Noise level

63 dB

Weight

31 kg
(68.34 lb)

Description

Cast iron pumping unit coupled directly to the electric motor, air cooling, ABS base and casing, suction filtration, silencer valve outlet. Accessories: Air filter, vacuum gauge Special voltages: on demand
