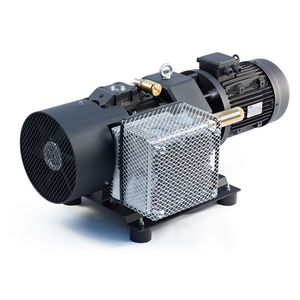

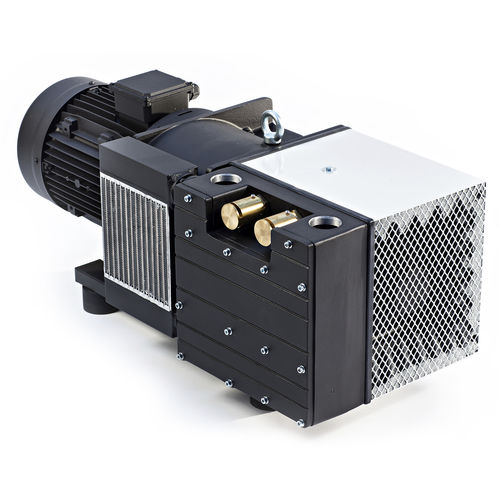

Rotary vane vacuum pump 140 S
drysingle-stagesuction

rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
dry
Number of stages
single-stage
Applications
suction
Other characteristics
ATEX, cast iron
Ultimate vacuum

200 mbar, 400 mbar
(2.9 psi, 5.8 psi)

Flow rate

146 m³/h, 175 m³/h
(5,155.94 ft³/h, 6,180.07 ft³/h)

Power

Max.: 9.2 kW
(12.51 hp)

Min.: 4 kW
(5.44 hp)

Noise level

79 dB, 80 dB

Weight

Max.: 159 kg
(350.53 lb)

Min.: 127 kg
(279.99 lb)

Description

Cast iron pumping unit coupled directly to the electric motor via an elastic coupling, air cooling, suction filtration. Accessories: Air filter, vacuum gauge. Special voltages: on demand

Catalogs

No catalogs are available for this product.

See all of Srl‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
