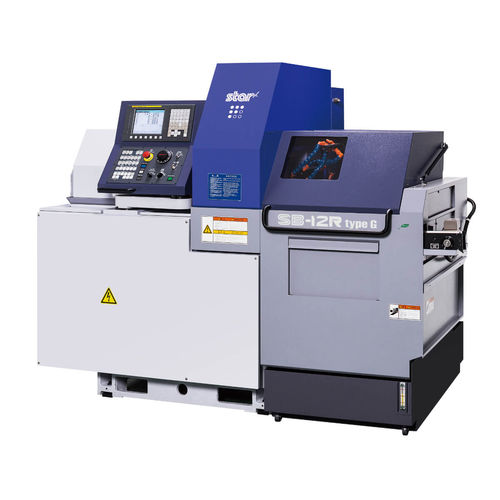

CNC Swiss lathe SB-12R type G3-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Diameter
13 mm
(0.51 in)- Spindle speed
6,000 rpm, 10,000 rpm, 15,000 rpm
(37,699.112 rad.min-1, 62,831.853 rad.min-1, 94,247.78 rad.min-1)- Rapids on X
35 m/min
- Rapids on Z
35 m/min
- Nominal power
1 kW, 1.2 kW
(1.4 hp, 1.6 hp)- Overall lenght
2,070 mm
(81 in)- Overall width
1,177 mm
(46 in)- Overall height
1,760 mm
(69 in)- Weight
1,750 kg
(3,858 lb)
Description
By selecting a tool post and tool unit and arranging them according to the machining process it enables many different kind of machining option.
-A unique slanted dovetail slideway structure for insreased rigidity of the tool post.
-4 types of tool posts are available to allow for a tooling layout most suited to the required machining applications.
-The guide bush/non-guide bush selector function ensures optimum machining for both long and short workpieces.
