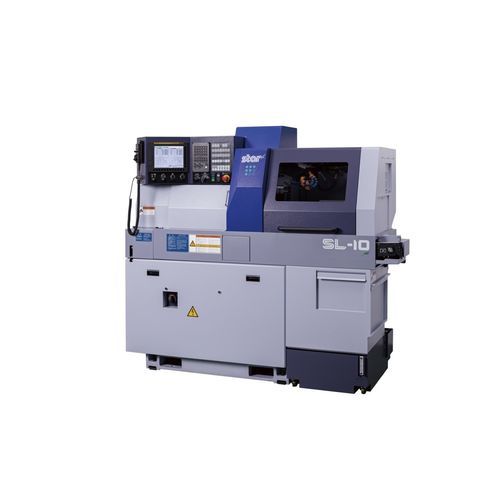

CNC Swiss lathe SL-7/10

multi-spindle4 toolsfor small parts production

Overview
Compact, high-spec sliding-head CNC lathe from STAR MICRONICS designed for precision small-diameter parts up to ø10 mm. Optimized for simultaneous front and back operations and high-speed multi-process production of bar-fed components.

Features

• Gang-type front tool post with cartridge-type 5-spindle cross drilling unit providing four cartridge positions for flexible tooling and multi-process front machining.
• 6-spindle backworking unit with Y2-axis control arranged in three rows and capable of mounting up to four power-driven tool units to separate front and back processes and reduce cycle time.
• High-output main and auxiliary motors deliver increased cutting capability at high spindle speeds, optimized for small-diameter part processing.

Tool Post
①
Tool post
Turning tools — 6 tools
Front-end fixed tools — 4 tools or 6 tools
Rear-end fixed tools — 4 tools or 6 tools
Power-driven tool — 1 tool
Cartridge positions — 4 Pos.
②
Rear-end working tools — 6 tools
Stationary tools — max. 6 tools
Power-driven tools — max. 4 tools

Specifications
Max. machining diameter — ø 10 mm (25/64 in)
Max. headstock stroke (Stationary G.B.) — 135 mm (5-5/16 in)
Max. headstock stroke (Revolving G.B.) — 105 mm (4-9/64 in)
R.M.G.B. unit — 75 mm (2-61/64 in)
Number of turning tools — 6 tools
Sleeve holder (4-spindle type) Front: 4 tools; Rear: 4 tools
Sleeve holder (6-spindle type) Front: 6 tools; Rear: 6 tools
Max. drilling capability — ø 6 mm (15/64 in)
Max. tapping capability — M5 x P0.8
Power-driven attachments: Cross milling — 1 tool; Cartridge type — 4 positions
Power-driven max. drilling capability — ø 5 mm (3/16 in)
Power-driven max. tapping capability — M4 x P0.7
Spindle speed (tool driven) — max. 12,000 min-1
Drive motor (power-driven tools) — 1.0 kW (Continuous) / 1.2 kW (5 min./30% ED)
Rapid feed rate — 35 m/min (X1, Y1, Z1, X2, Z2); 15 m/min (Y2)
Main spindle indexing angle — C-axis control
Main spindle speed (Stationary G.B.) — max. 18,000 min-1
Main spindle speed (Revolving G.B.) — max. 15,000 min-1
Main spindle motor — 3.7 kW (Continuous) / 5.5 kW (10 min./25% ED)
Dimensions (WxDxH) — 1,865 x 795 x 1,815 mm
Weight — 1,600 kg
Power consumption — 3.8 KVA

Backworking Attachment
Max. chucking diameter — ø 10 mm (25/64 in)
Max. length for front ejection — 70 mm (2-3/4 in)
Max. work projection length — 20 mm (25/32 in)
6-spindle backworking unit — Number of tools: 6 tools
Max. drilling capability (Stationary tool) — ø 6 mm (15/64 in)
Max. drilling capability (Power-driven att.) — ø 5 mm (3/16 in)
Max. tapping capability (Stationary tool) — M5 x P0.8
Max. tapping capability (Power-driven att.) — M4 x P0.7
Sub spindle indexing angle — C-axis control
Sub spindle speed — max. 12,000 min-1
Sub spindle motor — 0.55 kW (Continuous) / 1.1 kW (15 min./40% ED)

Technical data

• Model: SL-7/10
• Manufacturer: STAR MICRONICS CO.,LTD
• Max machining diameter: ø 10 mm
• Max drilling capability: ø 6 mm (stationary) / ø 5 mm (power-driven)
• Max tapping capability: M5 x P0.8 (stationary) / M4 x P0.7 (power-driven)
• Main spindle speeds: up to 18,000 min-1 (stationary G.B.), 15,000 min-1 (revolving G.B.)
• Main spindle motor: 3.7 kW (Continuous) / 5.5 kW (10 min./25% ED)
• Drive motor (power-driven tools): 1.0 kW (Continuous) / 1.2 kW (5 min./30% ED)
• Rapid feed rates: 35 m/min (X1, Y1, Z1, X2, Z2); 15 m/min (Y2)
• Dimensions (WxDxH): 1,865 x 795 x 1,815 mm
• Weight: 1,600 kg
• Power consumption: 3.8 KVA
