CNC Swiss lathe SP-20/23
multi-spindle4 tools8 tools

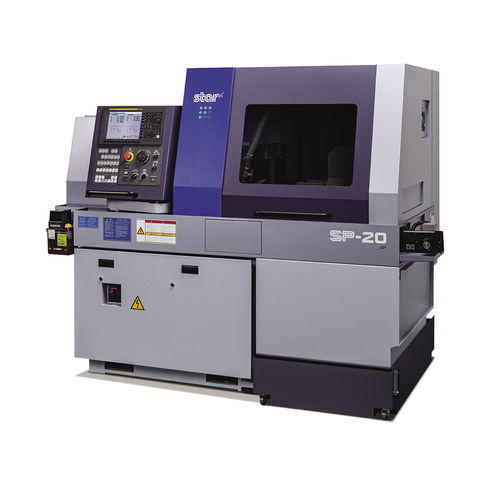

CNC Swiss lathe - SP-20/23 - Star Micronics Machine Tools - multi-spindle / 4 tools / 8 tools
CNC Swiss lathe - SP-20/23 - Star Micronics Machine Tools - multi-spindle / 4 tools / 8 tools
CNC Swiss lathe - SP-20/23 - Star Micronics Machine Tools - multi-spindle / 4 tools / 8 tools - image - 2
CNC Swiss lathe - SP-20/23 - Star Micronics Machine Tools - multi-spindle / 4 tools / 8 tools - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of spindles
multi-spindle
Number of tool stations
4 tools, 8 tools
Associated function
drilling, tapping
Diameter

23 mm, 25.4 mm
(0.91 in, 1 in)

Spindle speed

10,000 rpm
(62,831.853 rad.min-1)

Maximum part length

105 mm
(4 in)

Rapids on X

35 m/min

Rapids on Z

35 m/s
(115 ft/s)

Nominal power

2.2 kW, 3.7 kW
(3 hp, 5 hp)

Overall lenght

2,100 mm
(83 in)

Overall width

1,200 mm
(47 in)

Overall height

1,785 mm
(70 in)

Weight

2,250 kg
(4,960 lb)

Description

Overview
  • Sliding-head automatic lathe designed for bar turning with tool-post support, enabling multi-operation cycles including drilling, tapping and backworking. Supports up to ø23 mm (option ø25.4 mm).


Key features
  • 7-spindle cross drilling unit located at the rear of the front-side tool post; up to 5 cartridge positions for diverse tooling.
  • Thermal sensors positioned across the machine provide high-accuracy thermal displacement compensation for stable machining.
  • Oversize specification option permits machining up to ø25.4 mm (1 in).
  • Power-driven tools and cartridge-type attachments increase process flexibility for drilling, tapping and driven tooling operations.


Tool posts and backworking
  • Turning tools: 7 or 8 positions; Front-end working tools: 4 or 5 positions; Rear-end working tools: 4 or 5 positions.
  • Power-driven tools: front up to 2 tools; backworking power-driven attachments up to 4 tools. Cartridge type: 5 positions. Sleeve holder options for multi-spindle configurations.


Backworking attachment (performance)
  • Max. chucking diameter: ø23 mm (29/32 in). OP: ø25.4 mm (1 in).
  • Max. length for front ejection: 105 mm (4-9/64 in). Max. work projection length: 30 mm (1-3/16 in).
  • 6-spindle backworking unit with power-driven attachments up to MAX. 4 tools.
  • Max. drilling capability (power-driven att.): ø8 mm (5/16 in). OP: 10 mm (25/64 in) and ø6 mm (15/64 in) depending on attachment.
  • Max. tapping capability: Stationary tool M6×P1.0 (OP: M8×P1.25); Power-driven att.: M5×P0.8.
  • Sub spindle: indexing via C-axis control; speed max. 10,000 min-1 (OP: max. 8,000 min-1); motor 1.5 kW (continuous) / 2.2 kW (15 min).


Technical specifications
  • Model: SP-20/23
  • Max. machining diameter: ø23 mm (29/32 in). OP: ø25.4 mm (1 in).
  • Max. headstock stroke (Standard): 205 mm (8 in); MR25: 196 mm (7-15/16 in).
  • R.M.G.B. unit: 155 mm (6-3/32 in).
  • N.G.B. type: Bar diameter × 2.5 (Max. 50 mm) (Max. 1-31/32 in).
  • Number of turning tools: 8 tools □12 mm; or 7 tools □16 mm ×3, □12 mm ×4.
  • Sleeve holder (4-spindle type): 4 tools (ø32×2, ø22×2) or 5 tools (ø22×5).
  • Max. drilling capability (standard): ø12 mm (1/2 in). OP: 13 mm (33/64 in).
  • Max. tapping capability (standard): M10 × P1.5 (OP: M12 × P1.75).
  • Power-driven attachments — Number of tools: Cross drilling × 2 tools + Cartridge type 5 pos.
  • Max. drilling capability (power-driven): ø8 mm (5/16 in).
  • Max. tapping capability (power-driven): M6 × P1.0.
  • Spindle speed (power-driven att.): max. 8,000 min-1.
  • Rapid feed rate: 35 m/min (X1, Y1, Z1, X2, Z2).
  • Main spindle: C-axis control; speed max. 10,000 min-1 (OP: max. 8,000 min-1); motor 2.2 kW (continuous) / 3.7 kW (15 min / 60% ED).
  • Dimensions (W × D × H): 2,100 × 1,200 × 1,785 mm; Weight: 2,250 kg; Power consumption: 5.5 kVA.


Applications
  • Precision small-diameter turned parts, high-mix / multi-operation production requiring drilling, tapping and backworking in a single cycle.


Options / Tags
  • RMGB
  • GB/NGB switchover
