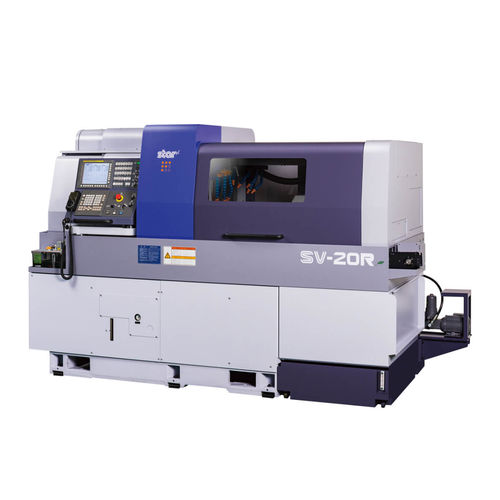

CNC Swiss lathe SV-20R3-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Diameter
20 mm
(0.79 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
3 kW, 4 kW
(4.1 hp, 5.4 hp)- Overall lenght
2,730 mm
(107 in)- Overall width
1,350 mm
(53 in)- Overall height
1,865 mm
(73 in)- Weight
4,150 kg
(9,149 lb)
Description
The above composition of the tool post reassures enhanced scalability for complex machining with adequate number of tools.
-The turret-type tool post can accommodate a 2-spindle type power tool unit with the B-axis control function at a maximum of 4 positions.
-The 8-spindle backworking unit with the Y-axis control function allows efficient main/back overlap machining.
-The guide bush and non-guide bush type are interchangeable. The non-guide bush type incorporates a spindle sleeve slide guideway structure for higher spindle rigidity.
