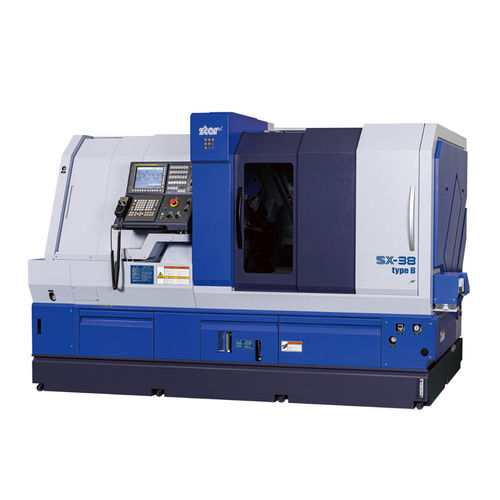

CNC Swiss lathe SX-38 series 3-axisdrillingtapping
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Applications
- drilling
- Other characteristics
- tapping, 4-spindle
- Diameter
38 mm, 42 mm
(1.5 in, 1.65 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
2 kW, 3 kW, 4 kW
(2.7 hp, 4.1 hp, 5.4 hp)- Overall lenght
2,955 mm
(116 in)- Overall width
1,430 mm
(56 in)- Overall height
1,975 mm
(78 in)- Weight
5,800 kg
(12,787 lb)
Description
The latest model is of the highest quality in all aspects of the 38-dia. class.
In addition to type A, quick-changeable turret-type tool post enabling use of the existing tool units, type B, turret-type tool post with one-position tool drive mechanism is lined up.
The gang-type tool post is equipped with the 4-spindle counter face milling unit with B-axis control function.
Power tool units can be mounted on all positions of the 8-spindle backworking unit with Y-axis control function.
