CNC Swiss lathe SW-20
3-axisuniversaldrilling

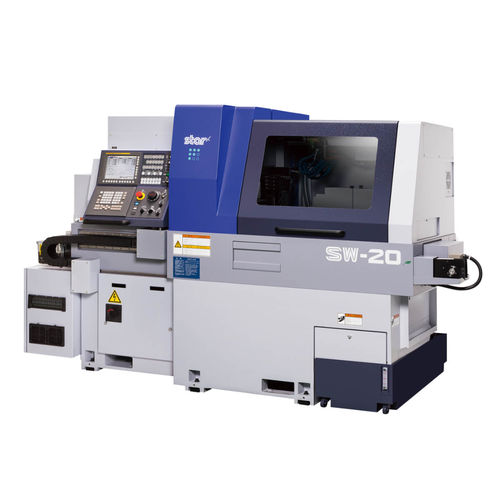

CNC Swiss lathe - SW-20 - Star Micronics Machine Tools - 3-axis / universal / drilling
CNC Swiss lathe - SW-20 - Star Micronics Machine Tools - 3-axis / universal / drilling
CNC Swiss lathe - SW-20 - Star Micronics Machine Tools - 3-axis / universal / drilling - image - 2
CNC Swiss lathe - SW-20 - Star Micronics Machine Tools - 3-axis / universal / drilling - image - 3
CNC Swiss lathe - SW-20 - Star Micronics Machine Tools - 3-axis / universal / drilling - image - 4
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
3-axis
Structure
universal
Applications
drilling
Other characteristics
Y-axis
Diameter

20 mm
(0.79 in)

Rapids on X

20,000 mm/min, 35,000 mm/min
(13 in/s, 23 in/s)

Rapids on Z

20,000 mm/min, 35,000 mm/min
(13 in/s, 23 in/s)

Nominal power

1 kW
(1.4 hp)

Overall lenght

2,588 mm
(102 in)

Overall width

1,300 mm
(51 in)

Overall height

1,765 mm
(69 in)

Weight

3,400 kg
(7,496 lb)

Description

Mechanicl and control design to minimize machining time and maximize efficiency. -Simultaneous machining of turning, cross drilling,etc. is possible by the independently controlled,opposing gang-type tool post. -The 8-spindle tool post with Y-axis control function exclusively designed for back end working. Front and rear end working are independently controlled to greatly reduce. -STAR Motion Control System is a unique control technology which minimizes non-cutting time.
