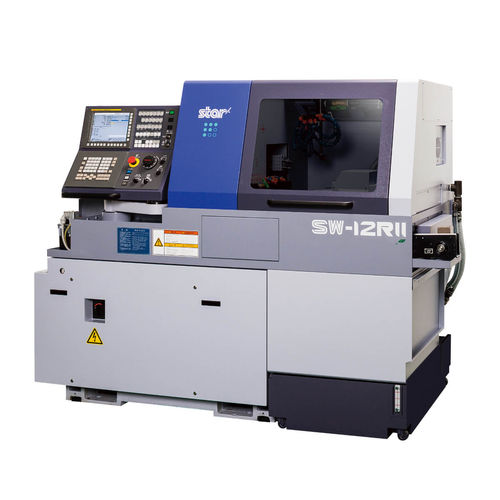

CNC Swiss lathe SW-12RⅡ3-axisdrillingfor small workpieces
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Applications
- drilling, for small workpieces
- Other characteristics
- high-capacity, multi-spindle
- Diameter
13 mm
(0.51 in)- Rapids on X
24,000 mm/min, 35,000 mm/min
(16 in/s, 23 in/s)- Rapids on Z
35,000 mm/min
(23 in/s)- Nominal power
1 kW
(1.4 hp)- Overall lenght
1,995 mm
(79 in)- Overall width
920 mm
(36 in)- Overall height
1,700 mm
(67 in)- Weight
2,100 kg
(4,630 lb)
Description
SW-12RII heading for the highest capability in machining of small diameter workpieces.
-Simultaneous machining of turning, cross drilling,etc. is possible by the independently controlled,opposing gang-type tool post.
-The guide bush/non-guide bush selector function ensures optimum machining for both long and short workpieces.
-STAR Motion Control System is a unique control technology which minimizes non-cutting time.
