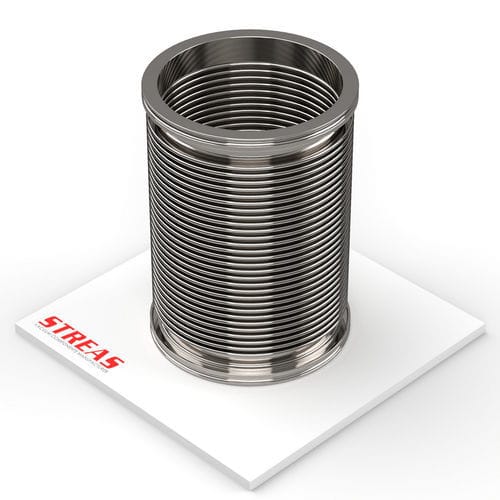

Circular bellows S63ISOK-130-1/4

stainless steel

Flanged deformable elements designed to absorb thermal expansion and vibration, preventing stress on the plant. Available with AISI 321 body and AISI 304 flanges, natural finish.

Available items:

• S63ISOK-130-1/4 — DN 63 — A: 95 mm (3.74 in) — B: 130 mm (5.118 in)
• S63ISOK-250-1/4 — DN 63 — A: 95 mm (3.74 in) — B: 250 mm (9.843 in)
• S80ISOK-130-1/4 — DN 80 — A: 110 mm (4.331 in) — B: 130 mm (5.118 in)
• S80ISOK-250-1/4 — DN 80 — A: 110 mm (4.331 in) — B: 250 mm (9.843 in)
• S100ISOK-130-1/4 — DN 100 — A: 130 mm (5.118 in) — B: 130 mm (5.118 in)
• S100ISOK-250-1/4 — DN 100 — A: 130 mm (5.118 in) — B: 250 mm (9.843 in)
• S160ISOK-150-1/4 — DN 160 — A: 180 mm (7.087 in) — B: 150 mm (5.906 in)
• S160ISOK-250-1/4 — DN 160 — A: 180 mm (7.087 in) — B: 250 mm (9.843 in)
• S200ISOK-230-1/4 — DN 200 — A: 240 mm (9.449 in) — B: 230 mm (9.055 in)
• S250ISOK-250-1/4 — DN 250 — A: 290 mm (11.417 in) — B: 250 mm (9.843 in)
• S320ISOK-300-1/4 — DN 320 — A: 370 mm (14.567 in) — B: 300 mm (11.811 in)
• S400ISOK-320-1/4 — DN 400 — A: 450 mm (17.717 in) — B: 320 mm (12.598 in)

Characteristics / Technical specifications:

• Line: ISO-K
• Line type: ISO
• Product type: Flexible connection pipes (flanged bellows)
• Finish: Natural
• Materials: body in AISI 321; flanges in AISI 304
• Function: absorption of thermal expansions and vibrations to reduce stresses on the plant
