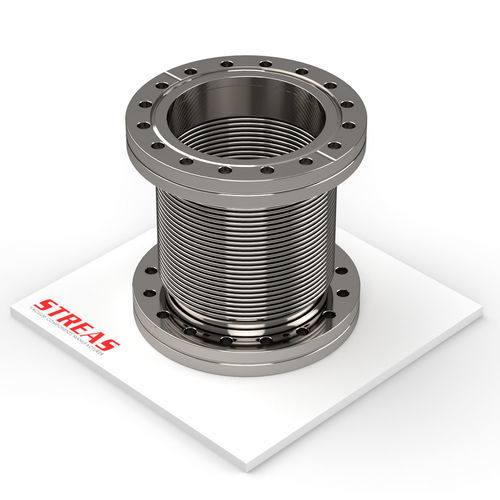

Steel pipe expansion joint S16CF-100-1/4

roundflangefor pipes

Overview

Flanged deformable element designed to absorb thermal expansions and vibrations, preventing stresses on the piping system. Supplied with a natural finish; materials suitable for industrial vacuum.

Articles available

• S16CF-100-1/4 — DN 16; Availability: High; A: 34 mm (1.339 inch); B: 27 mm (1.063 inch); C: 100 mm (3.937 inch)
• S38CF-130-1/4 — DN 38; Availability: High; A: 70 mm (2.756 inch); B: 58.7 mm (2.311 inch); C: 130 mm (5.118 inch)
• S63CF-150-1/4 — DN 63; Availability: Medium; A: 114 mm (4.488 inch); B: 92.2 mm (3.63 inch); C: 150 mm (5.906 inch)
• S100CF-150-1/4 — DN 100; Availability: Medium; A: 152 mm (5.984 inch); B: 130.3 mm (5.13 inch); C: 150 mm (5.906 inch)
• S150CF-200-1/4 — DN 150; Availability: Medium; A: 202 mm (7.953 inch); B: 181 mm (7.126 inch); C: 200 mm (7.874 inch)
• S200CF-260-1/4 — DN 200; Availability: Low; A: 253 mm (9.961 inch); B: 231.8 mm (9.126 inch); C: 260 mm (10.236 inch)
• S250CF-280-1/4 — DN 250; Availability: Low; A: 306 mm (12.047 inch); B: 284 mm (11.181 inch); C: 280 mm (11.024 inch)

Features / technical specifications

• Line: CF
• Line type: CF
• Product type: Flexible connection piping
• Materials (general): bellows in AISI 321; flanges in AISI 304
• Finish: Natural
• Function: flanged deformable elements to absorb thermal expansions and vibrations
• Documentation available: commercial product sheet (S10-11341-GC.pdf) and technical sheet (S10-11341-ST.pdf)
• Technical image and drawings available on the product page
