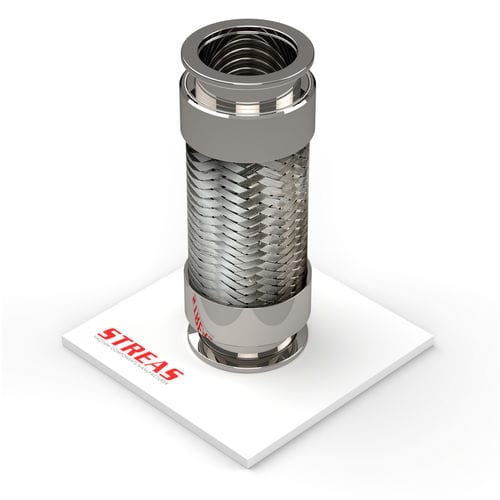

Industrial hose assembly FVP series
steelreinforced

Industrial hose assembly - FVP series - Streas srl - steel / reinforced
Industrial hose assembly - FVP series - Streas srl - steel / reinforced
Industrial hose assembly - FVP series - Streas srl - steel / reinforced - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Applications
industrial
Material
steel
Other characteristics
reinforced

Description

Overview
  • Flexible flanged connection hoses with a metal braid allowing operation under vacuum as well as pressure.
  • Material: AISI 304; Finish: natural.
  • Intended for flexible connections in piping systems where braid protection and compatibility with vacuum and pressure lines are required.


Items
  • FVP16KF-150-4 — Materials: AISI 304; Finish: Natural; DN: 16; A: 30 mm (1.181 inch); B: 150 mm (5.906 inch)
  • FVP16KF-250-4 — Materials: AISI 304; Finish: Natural; DN: 16; A: 30 mm (1.181 inch); B: 250 mm (9.843 inch)
  • FVP16KF-500-4 — Materials: AISI 304; Finish: Natural; DN: 16; A: 30 mm (1.181 inch); B: 500 mm (19.685 inch)
  • FVP16KF-750-4 — Materials: AISI 304; Finish: Natural; DN: 16; A: 30 mm (1.181 inch); B: 750 mm (29.528 inch)
  • FVP16KF-1000-4 — Materials: AISI 304; Finish: Natural; DN: 16; A: 30 mm (1.181 inch); B: 1000 mm (39.37 inch)
  • FVP16KF-1500-4 — Materials: AISI 304; Finish: Natural; DN: 16; A: 30 mm (1.181 inch); B: 1500 mm (59.055 inch)
  • FVP25KF-150-4 — Materials: AISI 304; Finish: Natural; DN: 25; A: 40 mm (1.575 inch); B: 150 mm (5.906 inch)
  • FVP25KF-250-4 — Materials: AISI 304; Finish: Natural; DN: 25; A: 40 mm (1.575 inch); B: 250 mm (9.843 inch)
  • FVP25KF-500-4 — Materials: AISI 304; Finish: Natural; DN: 25; A: 40 mm (1.575 inch); B: 500 mm (19.685 inch)
  • FVP25KF-750-4 — Materials: AISI 304; Finish: Natural; DN: 25; A: 40 mm (1.575 inch); B: 750 mm (29.528 inch)
  • FVP25KF-1000-4 — Materials: AISI 304; Finish: Natural; DN: 25; A: 40 mm (1.575 inch); B: 1000 mm (39.37 inch)
  • FVP25KF-1500-4 — Materials: AISI 304; Finish: Natural; DN: 25; A: 40 mm (1.575 inch); B: 1500 mm (59.055 inch)
  • FVP40KF-150-4 — Materials: AISI 304; Finish: Natural; DN: 40; A: 55 mm (2.165 inch); B: 150 mm (5.906 inch)
  • FVP40KF-250-4 — Materials: AISI 304; Finish: Natural; DN: 40; A: 55 mm (2.165 inch); B: 250 mm (9.843 inch)
  • FVP40KF-500-4 — Materials: AISI 304; Finish: Natural; DN: 40; A: 55 mm (2.165 inch); B: 500 mm (19.685 inch)
  • FVP40KF-750-4 — Materials: AISI 304; Finish: Natural; DN: 40; A: 55 mm (2.165 inch); B: 750 mm (29.528 inch)
  • FVP40KF-1000-4 — Materials: AISI 304; Finish: Natural; DN: 40; A: 55 mm (2.165 inch); B: 1000 mm (39.37 inch)
  • FVP40KF-1500-4 — Materials: AISI 304; Finish: Natural; DN: 40; A: 55 mm (2.165 inch); B: 1500 mm (59.055 inch)


Characteristics / technical specifications
  • Line: KF
  • Line type: KF
  • Product type: Flanged flexible connection hoses
  • Material: AISI 304
  • Finish: Natural
  • Structure: Flexible hose with metal braid
  • Use: Suitable for vacuum and pressure lines
  • Availability: Various codes and lengths (see Items list)
