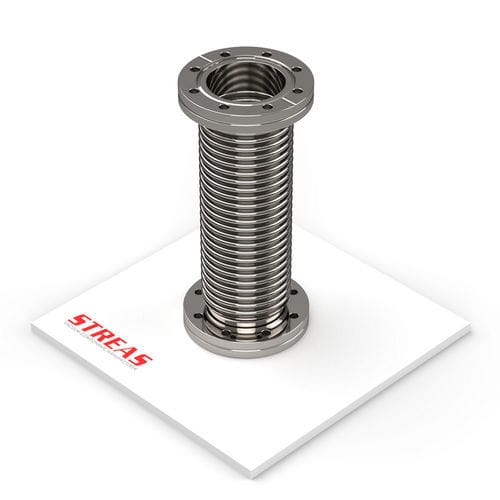

Metal hose F series

flexiblestandardwith flange

Product overview

Flanged flexible connection hoses designed for articulated and space-saving pipe connections. Available with AISI 316 tube and AISI 304 flanges, natural finish. Suitable for industrial fluid systems requiring axial or angular compensation and straightforward installation.

Articles available:

• F16CF-250-6/4
  • DN: 16
  • A: 34 mm / 1.339 in
  • B: 27 mm / 1.063 in
  • Length (C): 250 mm / 9.843 in
  • Availability: High
• F16CF-500-6/4
  • DN: 16
  • A: 34 mm / 1.339 in
  • B: 27 mm / 1.063 in
  • Length (C): 500 mm / 19.685 in
  • Availability: High
• F16CF-1000-6/4
  • DN: 16
  • A: 34 mm / 1.339 in
  • B: 27 mm / 1.063 in
  • Length (C): 1000 mm / 39.37 in
  • Availability: High
• F38CF-250-6/4
  • DN: 38
  • A: 70 mm / 2.756 in
  • B: 58.7 mm / 2.311 in
  • Length (C): 250 mm / 9.843 in
  • Availability: High
• F38CF-500-6/4
  • DN: 38
  • A: 70 mm / 2.756 in
  • B: 58.7 mm / 2.311 in
  • Length (C): 500 mm / 19.685 in
  • Availability: High
• F38CF-750-6/4
  • DN: 38
  • A: 70 mm / 2.756 in
  • B: 58.7 mm / 2.311 in
  • Length (C): 750 mm / 29.528 in
  • Availability: High
• F38CF-1000-6/4
  • DN: 38
  • A: 70 mm / 2.756 in
  • B: 58.7 mm / 2.311 in
  • Length (C): 1000 mm / 39.37 in
  • Availability: High
• F63CF-250-6/4
  • DN: 63
  • A: 113 mm / 4.449 in
  • B: 92.2 mm / 3.63 in
  • Length (C): 250 mm / 9.843 in
  • Availability: Medium
• F63CF-500-6/4
  • DN: 63
  • A: 113 mm / 4.449 in
  • B: 92.2 mm / 3.63 in
  • Length (C): 500 mm / 19.685 in
  • Availability: Medium
• F63CF-1000-6/4
  • DN: 63
  • A: 113 mm / 4.449 in
  • B: 92.2 mm / 3.63 in
  • Length (C): 1000 mm / 39.37 in
  • Availability: Medium
• F100CF-250-6/4
  • DN: 100
  • A: 152 mm / 5.984 in
  • B: 130.3 mm / 5.13 in
  • Length (C): 250 mm / 9.843 in
  • Availability: Medium
• F100CF-500-6/4
  • DN: 100
  • A: 152 mm / 5.984 in
  • B: 130.3 mm / 5.13 in
  • Length (C): 500 mm / 19.685 in
  • Availability: Medium
• F100CF-1000-6/4
  • DN: 100
  • A: 152 mm / 5.984 in
  • B: 130.3 mm / 5.13 in
  • Length (C): 1000 mm / 39.37 in
  • Availability: Medium

Characteristics / Technical specifications:

• Line: CF
• Line type: CF
• Product type: Flexible connection hoses
• Finish: Natural
• Materials: tube in AISI 316, flanges in AISI 304
• Type: flanged for articulated and versatile connections
• Standard sizes in range: DN 16, 38, 63, 100; standard C lengths 250 mm, 500 mm, 750 mm, 1000 mm
• Technical and commercial documentation available (product sheet and technical datasheet PDF)
