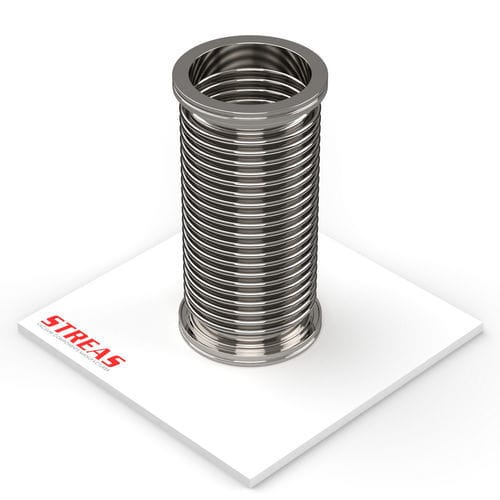

Metal hose F63ISOK-250-6/4
industrialwith flangearticulated

Metal hose - F63ISOK-250-6/4 - Streas srl - industrial / with flange / articulated
Metal hose - F63ISOK-250-6/4 - Streas srl - industrial / with flange / articulated
Metal hose - F63ISOK-250-6/4 - Streas srl - industrial / with flange / articulated - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Material
metal
Applications
industrial
Other characteristics
with flange, articulated
Inner diameter

63 mm, 80 mm, 100 mm, 160 mm
(2.48 in, 3.15 in, 3.937 in, 6.299 in)

Temperature

Max.: 860 °C
(1,580 °F)

Min.: -200 °C
(-328 °F)

Description

Flanged flexible hose designed for articulated connections to allow versatile installation; suitable for use on ISO-K lines. Available with AISI 316 tube and AISI 304 flanges, natural finish.

Product details
  • Materials: tube in AISI 316, flanges in AISI 304
  • Finish: Natural
  • Type: Flexible connection piping
  • Line: ISO-K (Line type: ISO)

Available items
  • F63ISOK-250-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 63; A: 95 mm; L: 250 mm; Availability: High
  • F63ISOK-500-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 63; A: 95 mm; L: 500 mm; Availability: High
  • F63ISOK-750-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 63; A: 95 mm; L: 750 mm; Availability: High
  • F63ISOK-1000-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 63; A: 95 mm; L: 1000 mm; Availability: High
  • F63ISOK-1500-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 63; A: 95 mm; L: 1500 mm; Availability: High
  • F63ISOK-2000-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 63; A: 95 mm; L: 2000 mm; Availability: Medium
  • F80ISOK-250-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 80; A: 110 mm; L: 250 mm; Availability: High
  • F80ISOK-500-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 80; A: 110 mm; L: 500 mm; Availability: High
  • F80ISOK-750-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 80; A: 110 mm; L: 750 mm; Availability: Medium
  • F80ISOK-1000-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 80; A: 110 mm; L: 1000 mm; Availability: Medium
  • F80ISOK-1500-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 80; A: 110 mm; L: 1500 mm; Availability: Low
  • F80ISOK-2000-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 80; A: 110 mm; L: 2000 mm; Availability: Low
  • F100ISOK-250-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 100; A: 130 mm; L: 250 mm; Availability: High
  • F100ISOK-500-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 100; A: 130 mm; L: 500 mm; Availability: High
  • F100ISOK-750-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 100; A: 130 mm; L: 750 mm; Availability: High
  • F100ISOK-1000-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 100; A: 130 mm; L: 1000 mm; Availability: High
  • F100ISOK-1500-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 100; A: 130 mm; L: 1500 mm; Availability: Low
  • F100ISOK-2000-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 100; A: 130 mm; L: 2000 mm; Availability: Low
  • F160ISOK-250-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 160; A: 180 mm; L: 250 mm; Availability: Low
  • F160ISOK-500-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 160; A: 180 mm; L: 500 mm; Availability: Low
  • F160ISOK-750-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 160; A: 180 mm; L: 750 mm; Availability: Low
  • F160ISOK-1000-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 160; A: 180 mm; L: 1000 mm; Availability: Low
  • F160ISOK-1500-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 160; A: 180 mm; L: 1500 mm; Availability: Low
  • F160ISOK-2000-6/4 — Materials: AISI 316 and AISI 304; Finish: Natural; DN: 160; A: 180 mm; L: 2000 mm; Availability: Low

Characteristics / Technical specifications
  • Line: ISO-K
  • Line type: ISO
  • Product type: Flexible connection piping
  • Materials: AISI 316 (tube), AISI 304 (flanges)
  • Finish: Natural
  • Available code variants: see items list (lengths from 250 mm to 2000 mm; DN 63, 80, 100, 160)
  • Technical documentation available (commercial data sheet and technical sheet in PDF format)
