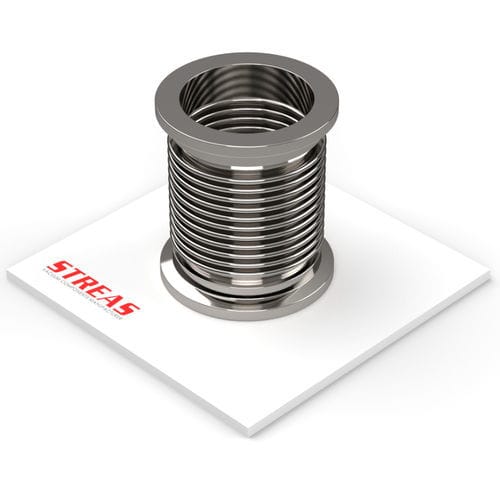

Steel pipe expansion joint ISOQ-130-1/4 seriesroundflangefor pipes
Add to favorites
Compare this product
Characteristics
- Material
- steel
- Configuration
- round
- Installation system
- flange
- Applications
- for pipes, for vacuum
- Other characteristics
- flexible, vibration damping
- Nominal diameter
63 mm, 80 mm, 100 mm
(2.48 in, 3.15 in, 3.94 in)- Operating temperature
Max.: 860 °C
(1,580 °F)Min.: -200 °C
(-328 °F)- Length
130 mm
(5.12 in)
Description
Flanged bellows designed to absorb thermal expansion and vibration, reducing stresses on the installation. Manufactured for vacuum applications and systems requiring flexible connection piping.
Items:
Characteristics / technical specifications:
Items:
- Code: S63ISOQ-130-1/4 — Materials: AISI 321 (bellows) and AISI 304 (flanges) — Finish: Natural — DN: 63 — A: 87 mm (3.425 in) — B: 130 mm (5.118 in)
- Code: S80ISOQ-130-1/4 — Materials: AISI 321 (bellows) and AISI 304 (flanges) — Finish: Natural — DN: 80 — A: 114 mm (4.488 in) — B: 130 mm (5.118 in)
- Code: S100ISOQ-130-1/4 — Materials: AISI 321 (bellows) and AISI 304 (flanges) — Finish: Natural — DN: 100 — A: 134 mm (5.276 in) — B: 130 mm (5.118 in)
Characteristics / technical specifications:
- Line: ISO-Q
- Line type: ISO
- Product type: Flexible connection piping (flanged bellows)
- Main function: absorb thermal expansion and vibration to protect the system
- Materials: bellows in AISI 321; flanges in AISI 304
- Finish: Natural
- Documentation available: commercial product sheet and technical data sheet (PDF)
