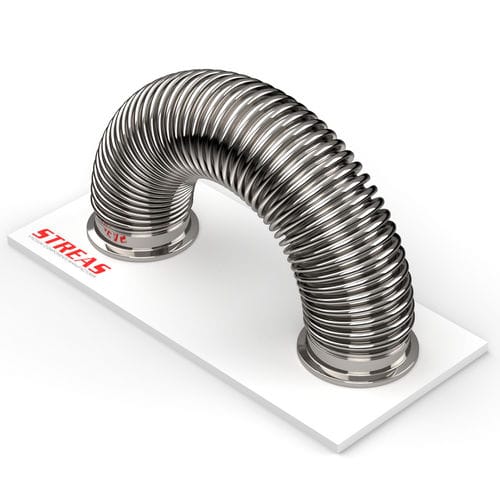

Industrial hose assembly FR series

steel

Flanged flexible hose of the KF line designed for articulated connections, with an annealing process that facilitates plastic deformation while maintaining structural integrity. Available with AISI 316 tube and AISI 304 flanges in multiple diameters and lengths to suit a range of industrial applications.

Main features:

• Line: KF
• Type: Flanged flexible connection hoses
• Finish: Annealed
• Materials: tube AISI 316; flanges AISI 304
• Function: articulated connections with high versatility; annealing process to facilitate plastic deformation

Available items (code — materials — finish — DN — A — B — availability):

• FR10KF-250-6/4 — AISI 316 and AISI 304 — Annealed — DN 10 — A: 30 mm (1.181 inch) — B: 250 mm (9.843 inch) — Availability: Medium
• FR10KF-500-6/4 — AISI 316 and AISI 304 — Annealed — DN 10 — A: 30 mm (1.181 inch) — B: 500 mm (19.685 inch) — Availability: Medium
• FR10KF-750-6/4 — AISI 316 and AISI 304 — Annealed — DN 10 — A: 30 mm (1.181 inch) — B: 750 mm (29.528 inch) — Availability: Medium
• FR10KF-1000-6/4 — AISI 316 and AISI 304 — Annealed — DN 10 — A: 30 mm (1.181 inch) — B: 1000 mm (39.37 inch) — Availability: Medium
• FR10KF-1500-6/4 — AISI 316 and AISI 304 — Annealed — DN 10 — A: 30 mm (1.181 inch) — B: 1500 mm (59.055 inch) — Availability: Medium
• FR10KF-2000-6/4 — AISI 316 and AISI 304 — Annealed — DN 10 — A: 30 mm (1.181 inch) — B: 2000 mm (78.74 inch) — Availability: Medium
• FR10KF-3000-6/4 — AISI 316 and AISI 304 — Annealed — DN 10 — A: 30 mm (1.181 inch) — B: 3000 mm (118.11 inch) — Availability: Medium
• FR16KF-250-6/4 — AISI 316 and AISI 304 — Annealed — DN 16 — A: 30 mm (1.181 inch) — B: 250 mm (9.843 inch) — Availability: High
• FR16KF-500-6/4 — AISI 316 and AISI 304 — Annealed — DN 16 — A: 30 mm (1.181 inch) — B: 500 mm (19.685 inch) — Availability: High
• FR16KF-750-6/4 — AISI 316 and AISI 304 — Annealed — DN 16 — A: 30 mm (1.181 inch) — B: 750 mm (29.528 inch) — Availability: High
• FR16KF-1000-6/4 — AISI 316 and AISI 304 — Annealed — DN 16 — A: 30 mm (1.181 inch) — B: 1000 mm (39.37 inch) — Availability: High
• FR16KF-1500-6/4 — AISI 316 and AISI 304 — Annealed — DN 16 — A: 30 mm (1.181 inch) — B: 1500 mm (59.055 inch) — Availability: High
• FR16KF-2000-6/4 — AISI 316 and AISI 304 — Annealed — DN 16 — A: 30 mm (1.181 inch) — B: 2000 mm (78.74 inch) — Availability: High
• FR16KF-3000-6/4 — AISI 316 and AISI 304 — Annealed — DN 16 — A: 30 mm (1.181 inch) — B: 3000 mm (118.11 inch) — Availability: High
• FR25KF-250-6/4 — AISI 316 and AISI 304 — Annealed — DN 25 — A: 40 mm (1.575 inch) — B: 250 mm (9.843 inch) — Availability: High
• FR25KF-500-6/4 — AISI 316 and AISI 304 — Annealed — DN 25 — A: 40 mm (1.575 inch) — B: 500 mm (19.685 inch) — Availability: High
• FR25KF-750-6/4 — AISI 316 and AISI 304 — Annealed — DN 25 — A: 40 mm (1.575 inch) — B: 750 mm (29.528 inch) — Availability: High
• FR25KF-1000-6/4 — AISI 316 and AISI 304 — Annealed — DN 25 — A: 40 mm (1.575 inch) — B: 1000 mm (39.37 inch) — Availability: High
• FR25KF-1500-6/4 — AISI 316 and AISI 304 — Annealed — DN 25 — A: 40 mm (1.575 inch) — B: 1500 mm (59.055 inch) — Availability: High
• FR25KF-2000-6/4 — AISI 316 and AISI 304 — Annealed — DN 25 — A: 40 mm (1.575 inch) — B: 2000 mm (78.74 inch) — Availability: High
• FR25KF-3000-6/4 — AISI 316 and AISI 304 — Annealed — DN 25 — A: 40 mm (1.575 inch) — B: 3000 mm (118.11 inch) — Availability: High
• FR40KF-250-6/4 — AISI 316 and AISI 304 — Annealed — DN 40 — A: 55 mm (2.165 inch) — B: 250 mm (9.843 inch) — Availability: High
• FR40KF-500-6/4 — AISI 316 and AISI 304 — Annealed — DN 40 — A: 55 mm (2.165 inch) — B: 500 mm (19.685 inch) — Availability: High
• FR40KF-750-6/4 — AISI 316 and AISI 304 — Annealed — DN 40 — A: 55 mm (2.165 inch) — B: 750 mm (29.528 inch) — Availability: High
• FR40KF-1000-6/4 — AISI 316 and AISI 304 — Annealed — DN 40 — A: 55 mm (2.165 inch) — B: 1000 mm (39.37 inch) — Availability: High
• FR40KF-1500-6/4 — AISI 316 and AISI 304 — Annealed — DN 40 — A: 55 mm (2.165 inch) — B: 1500 mm (59.055 inch) — Availability: High
• FR40KF-2000-6/4 — AISI 316 and AISI 304 — Annealed — DN 40 — A: 55 mm (2.165 inch) — B: 2000 mm (78.74 inch) — Availability: High
• FR40KF-3000-6/4 — AISI 316 and AISI 304 — Annealed — DN 40 — A: 55 mm (2.165 inch) — B: 3000 mm (118.11 inch) — Availability: High
• FR50KF-250-6/4 — AISI 316 and AISI 304 — Annealed — DN 50 — A: 75 mm (2.953 inch) — B: 250 mm (9.843 inch) — Availability: High
• FR50KF-500-6/4 — AISI 316 and AISI 304 — Annealed — DN 50 — A: 75 mm (2.953 inch) — B: 500 mm (19.685 inch) — Availability: High
• FR50KF-750-6/4 — AISI 316 and AISI 304 — Annealed — DN 50 — A: 75 mm (2.953 inch) — B: 750 mm (29.528 inch) — Availability: High
• FR50KF-1000-6/4 — AISI 316 and AISI 304 — Annealed — DN 50 — A: 75 mm (2.953 inch) — B: 1000 mm (39.37 inch) — Availability: High
• FR50KF-1500-6/4 — AISI 316 and AISI 304 — Annealed — DN 50 — A: 75 mm (2.953 inch) — B: 1500 mm (59.055 inch) — Availability: High
• FR50KF-2000-6/4 — AISI 316 and AISI 304 — Annealed — DN 50 — A: 75 mm (2.953 inch) — B: 2000 mm (78.74 inch) — Availability: High
• FR50KF-3000-6/4 — AISI 316 and AISI 304 — Annealed — DN 50 — A: 75 mm (2.953 inch) — B: 3000 mm (118.11 inch) — Availability: High

Technical documents:

• Commercial data sheet and technical sheet available in PDF (see attached documents)

Characteristics / Technical specifications:

• Materials: tube AISI 316; flanges AISI 304
• Finish: annealed
• Available DN range: 10, 16, 25, 40, 50
• Dimension A (example by DN): 30 mm for DN 10/16; 40 mm for DN 25; 55 mm for DN 40; 75 mm for DN 50
• Available lengths B: 250, 500, 750, 1000, 1500, 2000, 3000 mm (variants per DN)
• Product type: Flanged flexible hoses for articulated connections
• Technical files available: technical drawing (.PNG) and product/technical datasheets in PDF
