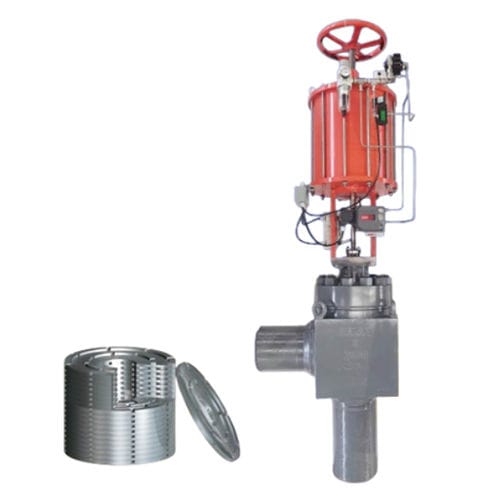

Control valve MXwith handwheelpneumaticelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Operation
- with handwheel, pneumatic, electrically-actuated, hydraulically-operated
- Function
- for control, pressure-reducing, pressure-control, flow-control, pressurisation, pneumatic pressure-control, hydraulic pressure-control, mass flow control, high-capacity control
- Media
- for hot water, for cooling water, for seawater, for industrial water, for steam
- Body
- welded
- Applications
- for industrial applications, for heating systems, for liquids, for pipes, for boiler, for pump, for steam turbines, heater, for OEM
- Material
- stainless steel, carbon steel
- Number of channels
- 2-way
- Fluid specification
- for corrosive fluids, for supercritical fluids
- Associated function
- reducing, balancing, recirculation
- Other characteristics
- ISO, ANSI, high-pressure, anti-corrosion, high-performance, high-temperature, high-performance
- DN
Min.: 0.5 in
Max.: 12 in
- Pressure
Min.: 10 MPa
Max.: 76 MPa
- Temperature
Min.: -29 °C
(-20 °F)Max.: 425 °C
(797 °F)
Description
Pressure level: 150LB-4500LB
Design standard: ASME B16.34
Valve body material: WB36/A105/F22
Flow characteristics: L
Leakage level: MSS-SP61
Product Features
1. - Multi-stage pressure réduction structure principle effectively avoids cavitation and prolongs service life.
2. - The valve seat and valve core have good sealing performance and achieve zéro leakage. It can ensure reliable and repeatable long-term dosure at high pressure.
3. - Ail valve internai parts can be quickly disassembled and replaced, which makes maintenance easy and reduces maintenance costs.
4 Applicable to peak load units.
