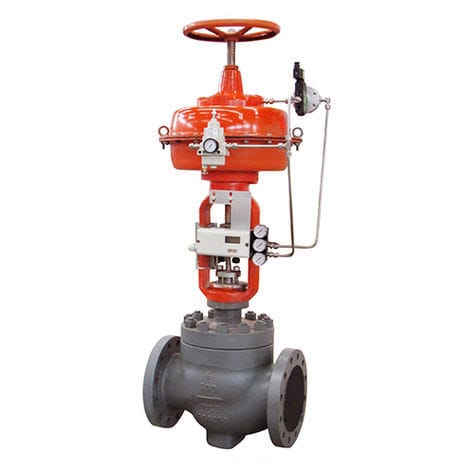

Control valve MA

manualpneumaticelectric

Pressure level: 150LB-4500LB Design standard: ASME B16.34 Valve body material: WCB/WC9/CF8/CF8M, etc. Flow characteristics: E%/L/Q Leakage level: ANCI FCI-02 IV/V/VI Product Features 1. - Good valve core stability. The sturdy and durable guide cylinder provides excellent valve core stability and can reduce vibration and mechanical 2. - Greater flow capacity. The flow-type flow channel of the valve has small flow résistance and large flow capacity. 3. - Balanced valve core structure. The valve core and sleeve form a pressure-balanced structure with a large adjustable range, high adjustment accuracy, and suitable for high pressure différence working conditions. For small flow and large pressure différence, a needle valve core is used, which has a large adjustable range and high adjustment accuracy. 4. - High temperature performance of the valve when IV or V level is dosed. Our company adopts the energy storage ring structure, which can achieve V level shutoff when the temperature reaches 300°C. Using C-ring métal valve trim, it can achieve IV level shutoff when the temperature reaches 593°C. 5. - The valve internais that have undergone standardized treatment have increased wear résistance and long service life. 6. - Modular design of valve internais makes maintenance and replacement more convenient.
