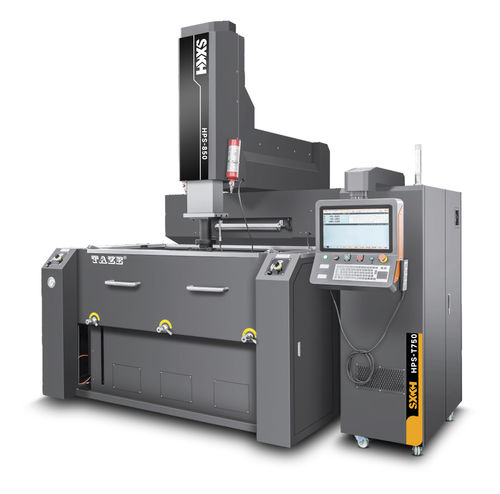

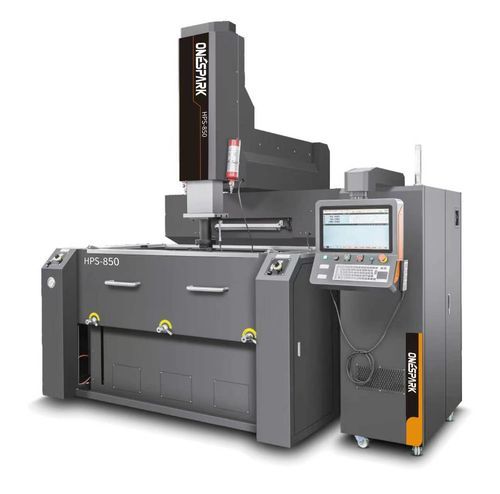

Die sinking EDM HPS-640high-speedprecisionfor micro-machining
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- CNC, precision, for mold manufacturing, high-speed, for metalworking tools, for large parts, for micro-machining
- X travel
600 mm
(23.62 in)- Y travel
400 mm
(15.75 in)- Z travel
350 mm
(13.78 in)
Description
MODEL: HPS-640
X/Y1Z-axis working stroke 600/400/350mm
Working oil tank volume (LxWxH) 1612x985x540mm
Table specifications (LxW) 900x500mm
Distance from electrode head to table 350-700mm
Max. electrode load 150KG
Max. worktable load capacity 2000KG
Net machine weight(including oil tank) 3700KG
Size (LxWxH) 2040x 2320x2530mm
X/Y1Z-axis working stroke 600/400/350mm
Working oil tank volume (LxWxH) 1612x985x540mm
Table specifications (LxW) 900x500mm
Distance from electrode head to table 350-700mm
Max. electrode load 150KG
Max. worktable load capacity 2000KG
Net machine weight(including oil tank) 3700KG
Size (LxWxH) 2040x 2320x2530mm
