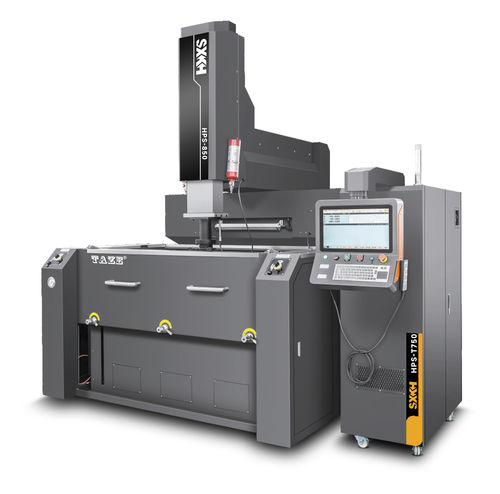

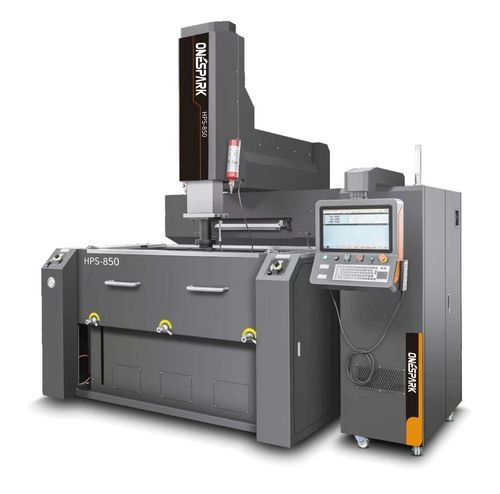

Die sinking EDM HPS-1060

high-accuracyhigh-speedflexible

MODEL: HPS-1060
X/Y/Z-axis working stroke 1000/600/400mm
Working oil tank size(LxWxH) 1800x1300x600mm
Table size (LxW) 1380x800mm
Distance from electrode tip to table 500-900mm
Max. electrode load capacity 200KG
Max. worktable load capacity 4000KG
Machine weight(including oil tank) 5200KG
Size (LxWxH) 2300x2850x3000mm
Min. Electrode Loss 0.1%
Max. machining current 75A(Optional 100A)
Positioning accuracy 5 um
Repeat positioning accuracy 2um

Machine Features:
◆ The seat adopts box-shaped structure design, with an ultra wide trail span, allowing the X and Y axis to run continuously
and form a stable parallellism with the tabletop, and achieving precise machining of both large and small molds.
◆ The square design of the machine head (BOX) can withstand external forces from the direction and maintain precise
machining of the original positioning. Ensure that the precision of heavy-duty electrode machining is not affected.
◆ Three axis adopts Japanese Panasonic absolute servo motors, which is fully digital controlled and equipped with an
encoder. It can feed back the electrode operation to the drive at any time, allowing the drive to control the motor's operation
more accurately. With fast response, small rotational inertia, smooth operation, low noise, no radio interference, no shaking
phenomenon and easy maintenance, the machine performance is effectively improved, with characteristics of strong
sensitivity and controllability.
◆ X, Y, and Z axis all use Taiwan grinding-grade ball screws.
◆ X axis and Y axis are designed with full-enclosed reinforced slides, and X-axis rail distance is greater than Y-axis stroke, to
ensure the parallelism between the entire stroke of X/ Y axis and the table.
◆ Through long-lasting and stable liquid temperature management and configuring the processing cooling system, ensure
the machine processing will not be affected by external conditions or processing status changes to maximize the machine's
general adaptability to various processing conditions and processing accuracy.
◆ Complete peripheral facilities, such as automatic fire extinguishing devices and surface sensing devices for processing
fluids, to provide a safe environment.
◆ The body is made of FC30 cast iron, which has undergone high-temperature annealing and natural aging treatment
