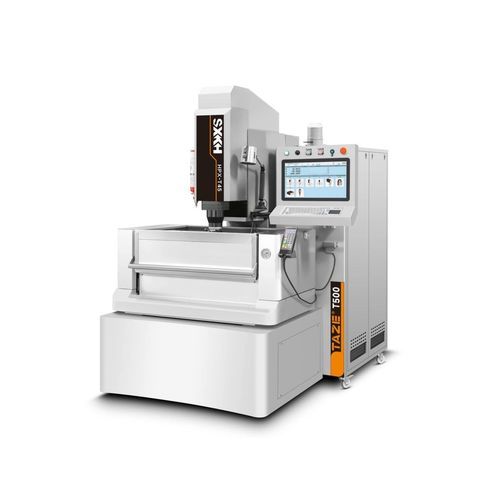

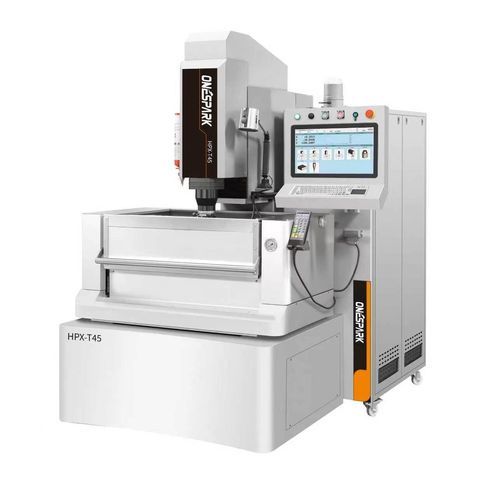

Die sinking EDM HPX-T45

precisionfor mold manufacturing

X/Y/Z axis all uses imported linear slide, Japanese Panasonic absolute servo motors, Taiwan Yintai or HIWIN C-grade screw and guide rails. Effectively ensure the μ-grade high precision of the machine tool, and the precision stability and retention in long-term use, with the characteristics of high rigidity and sensitivity. The column adopts a one-stage structure, which makes the Z axis more rigid and allows for easy and flexible processing of heavy-duty electrodes. Immersion processing is adopted, to effectively ensure processing accuracy and surface finish. The whole machine adopts centralized lubrication, providing uniform lubrication on all rail surfaces, with smooth and long-lasting axial movement accuracy. Complete peripheral facilities, such as automatic fire extinguishing devices and surface sensing devices for processing fluids, to provide a safe environment. The body is made of FC30 cast iron, which has undergone high-temperature annealing and natural aging treatment.
