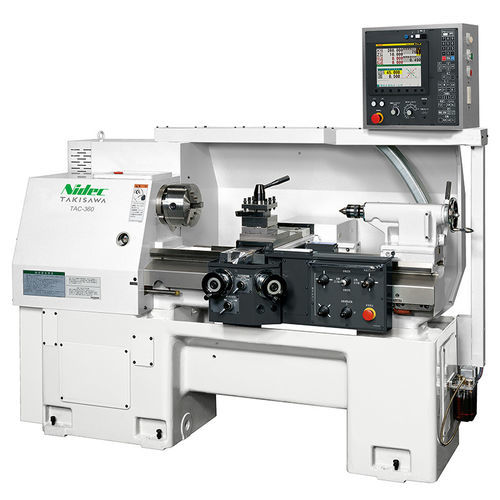

CNC lathe TAC-360

horizontalcompact

Overview
The TAC-360 is a compact CNC/manual lathe designed for space-efficient installation. It features a clear footing and integrates Takisawa's RAKU-RAKU software to simplify operation and reduce the need for NC programming knowledge.

Key features

• Takisawa RAKU-RAKU software — intuitive input, minimizes need for NC programming
• RAKU-RAKU Expert mode — improved operability for operators
• Compact footprint with clear footing for easy installation and maintenance
• Dual operation: CNC and manual modes for flexible use

Technical specifications

• Swing over bed: 360 mm
• Swing over cross slide: 190 mm
• Turning length (between centers): 770 mm
• Spindle speed range: 60–2000 min-1
• Thread cutting / Registered threads: 32 types pre-registered + 8 user-registrable
• Range of metric thread (pitch): 0.001–500 (any). Condition: thread lead (feed amount) mm x spindle speed (min-1) = 6000.
• Range of inch threads (pitch, TPI): 999.99999–0.05080 (any). Condition: thread lead (feed amount) mm x spindle speed (min-1) = 6000.
• Spindle motor: 3.7/5.5 kW
• Electric power: 8 kVA
• Machine height: 1750 mm
• Floor space required (depth): 1175 mm
• Floor space required (width): 2070 mm
• Machine weight: 1200 kg
