CNC lathe TAC-800
horizontalfor long workpiecesfor large-bore parts

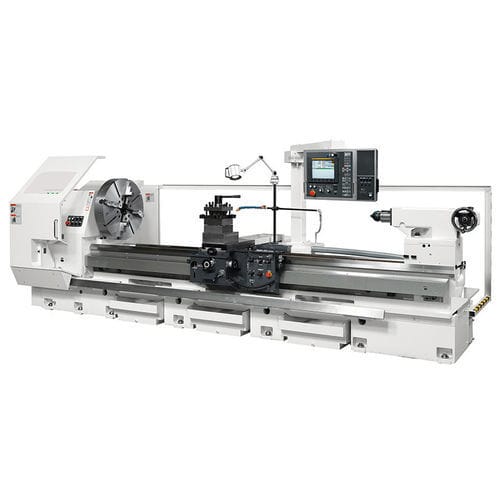

CNC lathe - TAC-800 - TAKISAWA - horizontal / for long workpieces / for large-bore parts
CNC lathe - TAC-800 - TAKISAWA - horizontal / for long workpieces / for large-bore parts
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Applications
for large workpieces, for large-bore parts, for long workpieces
Performance
powerful
Other characteristics
large
Diameter

540 mm, 820 mm
(21.26 in, 32.28 in)

Spindle speed

Max.: 1,000 rpm
(6,283.185 rad.min-1)

Min.: 9 rpm
(56.549 rad.min-1)

Maximum part length

1,052 mm, 6,052 mm
(41 in, 238 in)

Nominal power

11 kW, 15 kW
(15 hp, 20.4 hp)

Overall lenght

1,800 mm
(71 in)

Overall width

3,036 mm, 8,036 mm
(120 in, 316 in)

Overall height

1,880 mm
(74 in)

Weight

Max.: 7,200 kg
(15,873 lb)

Min.: 3,900 kg
(8,598 lb)

Description

The Takisawa TAC-800 is a CNC/manual lathe engineered for powerful turning of large-diameter and medium-to-long workpieces.

Key features
  • Takisawa's unique "RAKU-RAKU" software: no NC programming knowledge required; simple input operation
  • RAKU-RAKU Expert: enhanced operability to improve operator convenience
  • Large-diameter work: through-hole diameters φ180 and φ260
  • Turning length range: 1000 mm to 6000 mm

Characteristics / Technical specifications
  • Swing Over Bed: 820 mm
  • Swing Over Cross Slide: 540 mm
  • Turning center distance (examples): 1000 mm to 6000 mm
  • Spindle Speed Range: 10–1000 min⁻¹ (OP.10–1000, 9–800)
  • Thread cutting / Number of registered threads: Already registered 32 types + any 8 types registrable
  • Range of metric thread (pitch): 0.001–500 (any). Condition: thread lead (mm) × spindle speed (min⁻¹) is 5000
  • Range of inch threads (pitch): 999.99999–0.05080 (any). Condition: thread lead (mm) × spindle speed (min⁻¹) is 5000
  • Spindle Motor: 11/15 kW
  • Electric Power: 17 kVA
  • Machine Height: 1880 mm
  • Floor Space Required (Depth): 1800 mm
  • Floor Space Required (Width): 3036–8036 mm
  • Machine Weight: 3900–7200 kg
