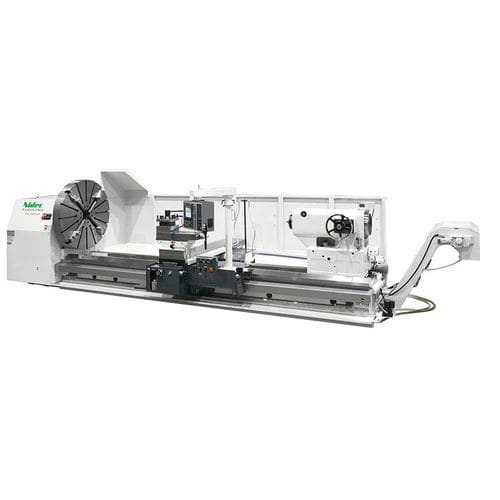

CNC lathe TAC-1500horizontalfor long workpiecesfor large parts
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Applications
- for large parts, for large workpieces, for long workpieces, for heavy turning
- Other characteristics
- large
- Diameter
1,080 mm, 1,500 mm
(42.52 in, 59.06 in)- Spindle speed
Max.: 600 rpm
(3,769.911 rad.min-1)Min.: 8 rpm
(50.265 rad.min-1)- Maximum part length
2,000 mm, 6,000 mm
(79 in, 236 in)- Maximum cutting length
Max.: 5,000 mm
(197 in)Min.: 2,000 mm
(79 in)- Nominal power
22 kW, 30 kW, 37 kW
(29.9 hp, 40.8 hp, 50.3 hp)- Overall lenght
2,760 mm
(109 in)- Overall width
5,350 mm, 9,350 mm
(211 in, 368 in)- Overall height
2,005 mm
(79 in)- Weight
Max.: 17,500 kg
(38,581 lb)Min.: 13,500 kg
(29,762 lb)
Description
The Takisawa TAC-1500 is a CNC/large manual lathe designed for turning large-diameter and long workpieces. It supports machining of long, heavy components and simplifies operator input with Takisawa's RAKU-RAKU software, avoiding the need for conventional NC programming.
Key features
Technical specifications
Key features
- Takisawa's RAKU-RAKU software — eliminates the need for NC programming; enables easy input operations.
- RAKU-RAKU Expert — enhanced operability tailored for operator convenience.
- Turning length options: 2000 mm–5000 mm (as listed).
Technical specifications
- Swing over bed: 1500 mm
- Swing over cross slide: 1080 mm
- Turning length (center distance): 2000–5000 mm
- Spindle speed range: 8–600 min-1
- Thread cutting / Registered thread types: 32 types pre-registered + 8 user-registrable types
- Range of metric thread (pitch): 0.001–500 (any). Condition: thread lead (feed amount) mm × spindle speed (min-1) is 5000.
- Range of inch threads (TPI): 999.99999–0.05080 (any). Condition: thread lead (feed amount) mm × spindle speed (min-1) is 5000.
- Spindle motor: 30/22 [OP.37/30] kW
- Electric power: 32 [OP.42] kVA
- Machine height: 2005 mm
- Floor space required (depth): 2760 mm
- Floor space required (width): 5350–9350 mm
- Machine weight: 13500–17500 kg
