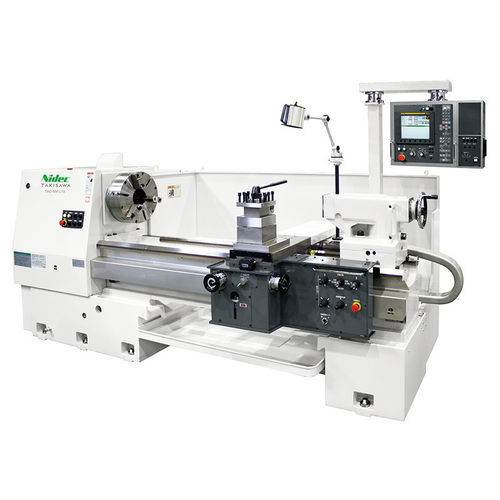

CNC lathe TAC-650horizontal
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Diameter
400 mm, 650 mm
(15.75 in, 25.59 in)- Maximum part length
1,040 mm, 3,040 mm
(41 in, 120 in)- Nominal power
11 kW, 15 kW
(15 hp, 20.4 hp)- Overall lenght
1,520 mm
(60 in)- Overall width
3,065 mm, 5,065 mm
(121 in, 199 in)- Overall height
1,770 mm
(70 in)- Weight
3,140 kg, 4,230 kg
(6,923 lb, 9,326 lb)
Description
Overview
Key features
Technical specifications
Applications
Additional information
- The Takisawa TAC-650 is a medium-size CNC lathe designed for turning small and medium parts as well as long-bar machining. It combines broad cutting capability with easy operation via Takisawa's RAKU-RAKU software.
Key features
- RAKU-RAKU software — NC programming not required; guided easy-input operation for routine and complex turning.
- RAKU-RAKU Expert — enhanced operator ergonomics and simplified setup.
- Multiple through-spindle diameters available: standard Φ105 (options Φ115 / Φ135).
- Covers a wide range of applications from short workpieces to long-bar machining with turning lengths L10 (1040) to L30 (3040).
Technical specifications
- Swing over bed: 650 mm
- Swing over cross slide: 400 mm
- Turning length (center distance): L10 (1040) ~ L30 (3040) mm
- Spindle speed range: 12 ~ 1200 min-1 [OP. 10 ~ 1000]
- Thread cutting / Registered threads: 32 types pre-registered + 8 user-registerable types
- Range of metric thread (pitch mm): 0.001 ~ 500 (any). Condition: thread lead (mm) × spindle speed (min-1) ≤ 5000.
- Range of inch threads (TPI): 999.99999 ~ 0.05080 (any). Condition: thread lead (mm) × spindle speed (min-1) ≤ 5000.
- Spindle motor: 11 / 15 kW
- Electric power: 17 kVA
- Machine height: 1770 mm
- Floor space required (depth): 1520 mm
- Floor space required (width): 3065 ~ 5065 mm
- Machine weight: 3140 ~ 4230 kg
Applications
- Suitable for production of shafts, automotive components, hydraulic parts, and long-bar turned parts in metalworking, general machinery and subcontract manufacturing.
Additional information
- Photo may include optional equipment.
- Options: spindle through-hole Φ115 / Φ135, power/motor variants and accessories available. Contact supplier for configuration and installation details.
