CNC lathe TAC-950
horizontalpowerfulhigh-performance

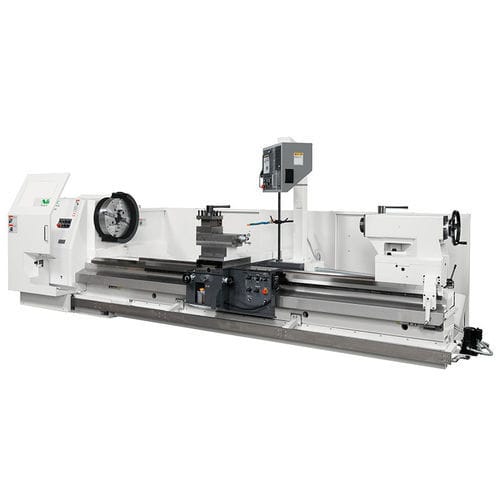

CNC lathe - TAC-950 - TAKISAWA - horizontal / powerful / high-performance
CNC lathe - TAC-950 - TAKISAWA - horizontal / powerful / high-performance
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Performance
high-performance, powerful
Diameter

600 mm, 950 mm
(23.62 in, 37.4 in)

Spindle speed

Min.: 9 rpm
(56.549 rad.min-1)

Max.: 850 rpm
(5,340.708 rad.min-1)

Maximum part length

2,370 mm, 6,370 mm
(93 in, 251 in)

Nominal power

15 kW, 18.5 kW
(20.4 hp, 25.2 hp)

Overall lenght

1,980 mm
(78 in)

Overall width

4,755 mm, 8,755 mm
(187 in, 345 in)

Overall height

1,945 mm
(77 in)

Weight

8,200 kg, 10,600 kg
(18,078 lb, 23,369 lb)

Description

Overview
  • The TAC-950 is a large CNC/manual lathe from Takisawa, engineered for safety-focused operation and heavy-duty turning applications.
  • Designed for long workpieces and high-power machining with spindle motor options up to 18.5 kW.


Key features
  • Takisawa's RAKU-RAKU software: no NC programming required, simplified input operation.
  • RAKU-RAKU Expert: enhanced operability to improve operator efficiency and ease of use.
  • Turning length range: 2,000–6,000 mm (models L20–L60).


Specifications
  • Swing over bed: 950 mm
  • Swing over cross slide: 600 mm
  • Turning length: L20(2370)–L60(6370) mm
  • Spindle speed range: 9–850 min-1
  • Thread cutting / number of registered threads: 32 types pre-registered + 8 user-registrable types
  • Metric thread pitch range: 0.001–500 (any). Condition: thread lead (mm) × spindle speed (min-1) = 5000.
  • Inch thread pitch range: 999.99999–0.05080 (any). Condition: thread lead (mm) × spindle speed (min-1) = 5000.
  • Spindle motor: 15 / 18.5 kW
  • Electric power: 22 kVA
  • Machine height: 1945 mm
  • Floor space required (depth): 1980 mm
  • Floor space required (width): 4755–8755 mm
  • Machine weight: 8200–10600 kg
