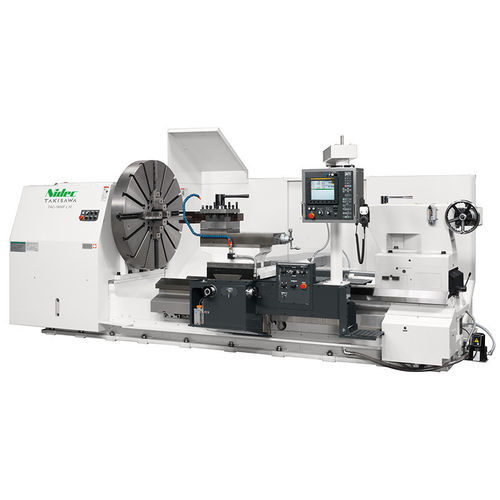

CNC lathe TAC-1800Fhorizontalheavy-duty
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Applications
- heavy-duty
- Diameter
1,300 mm
(51.18 in)- Spindle speed
Max.: 250 rpm
(1,570.796 rad.min-1)Min.: 3 rpm
(18.85 rad.min-1)- Maximum part length
1,300 mm, 2,300 mm
(51 in, 91 in)- Nominal power
15 kW, 18.5 kW, 22 kW
(20.4 hp, 25.2 hp, 29.9 hp)- Overall lenght
2,760 mm
(109 in)- Overall width
4,000 mm, 5,000 mm
(157 in, 197 in)- Overall height
1,905 mm
(75 in)- Weight
9,500 kg, 10,500 kg
(20,944 lb, 23,149 lb)
Description
The TAC-1800F is a CNC face lathe by Takisawa, engineered for heavy-duty turning tasks and simplified operator interaction.
Key features
Technical specifications
Key features
- Takisawa RAKU-RAKU conversational software to simplify input operations and reduce the need for NC programming knowledge.
- RAKU-RAKU Expert mode for improved operability and operator convenience.
- Standard Curvic manual index square tool post with 270 mm opposite-side support for heavy cutting.
- Highly rigid headstock with low-speed rotation to enable full-power cutting.
- Available in two turning lengths: L10 and L20.
Technical specifications
- Swing over bed: 1300 mm
- Swing over gap: 1830 mm
- Swing over cross slide: 880 mm
- Turning length (distance between centers): L10 (1300 mm), L20 (2300 mm)
- Spindle speed range: 3–250 min-1
- Thread cutting / registered thread types: 32 types pre-registered + 8 user-registrable
- Range of metric thread (pitch): 0.001–500 (any). Condition: thread lead (mm) × spindle speed (min-1) = 5000
- Range of inch threads (TPI): 999.99999–0.05080 (any). Condition: thread lead (mm) × spindle speed (min-1) = 5000
- Spindle motor: 18.5/15 kW [OP.22/18.5]
- Electric power: 22 kVA [OP.26]
- Machine height: 1905 mm
- Floor space required (depth): 2760 mm
- Floor space required (width): 4000, 5000 mm
- Machine weight: 9500, 10500 kg
