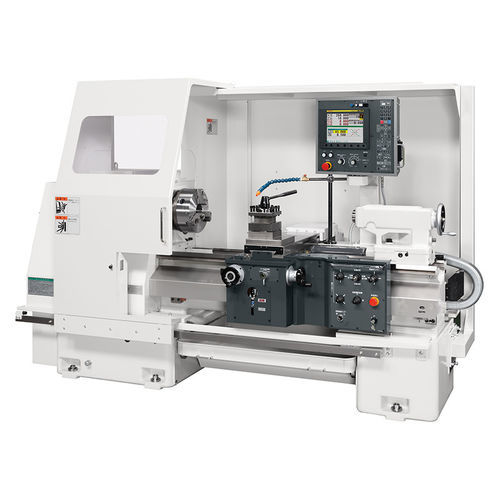

CNC lathe TAC-510horizontal
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Diameter
270 mm, 510 mm
(10.63 in, 20.08 in)- Spindle speed
Min.: 15 rpm
(94.248 rad.min-1)Max.: 2,000 rpm
(12,566.371 rad.min-1)- Maximum part length
1,010 mm, 1,510 mm
(40 in, 59 in)- Nominal power
7.5 kW, 9 kW
(10.2 hp, 12.2 hp)- Overall lenght
1,535 mm
(60 in)- Overall width
2,905 mm, 3,415 mm
(114 in, 134 in)- Overall height
1,830 mm
(72 in)- Weight
2,550 kg, 2,900 kg
(5,622 lb, 6,393 lb)
Description
Overview
The Takisawa TAC-510 is a CNC/manual lathe suited to a wide range of turning and machining operations, from heavy turning to fine machining. It integrates operator-oriented software to simplify NC programming and machine operation.
Key features
Specifications / Technical data
The Takisawa TAC-510 is a CNC/manual lathe suited to a wide range of turning and machining operations, from heavy turning to fine machining. It integrates operator-oriented software to simplify NC programming and machine operation.
Key features
- Intuitive operator-oriented software to simplify NC programming and daily operation.
- Takisawa's RAKU-RAKU software: eliminates the need for NC programming with easy input operations.
- RAKU-RAKU Expert: enhanced operability designed to reduce operator workload.
Specifications / Technical data
- Swing over bed: 510 mm
- Swing over cross slide: 270 mm
- Turning length (between centers): L10 (1010 mm), L15 (1510 mm)
- Spindle speed range: 15–1500 min⁻¹ (OP.20–2000)
- Thread cutting / Number of registered threads: 32 types pre-registered + any 8 types registerable
- Range of metric thread (pitch): 0.001–500 mm (any). Condition: thread lead (mm) × spindle speed (min⁻¹) ≤ 5000
- Range of inch threads (pitch): 999.99999–0.05080 (any). Condition: thread lead (mm) × spindle speed (min⁻¹) ≤ 5000
- Spindle motor: 7.5 / 9 kW
- Electric power: 11 kVA
- Machine height: 1830 mm
- Floor space required (depth): 1535 mm
- Floor space required (width): 2905 mm, 3415 mm
- Machine weight: 2550 kg, 2900 kg
