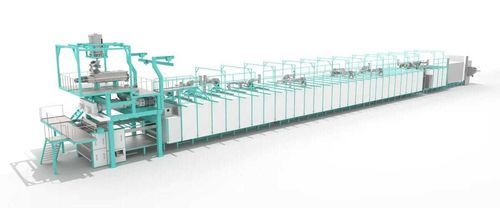

Dry pasta production line

long-cutspaghettiwith dosing

Overview
The modular long-cut pasta production line is engineered for stable, continuous industrial manufacture of spaghetti, linguine and similar long-cut pasta using semolina or flour-based recipes. The system integrates a multi-stage drying tunnel with zonal climate control and a PLC automation platform to ensure homogeneous drying, reduced cracking risk and consistent final product quality. Each drying stage is independently controlled for temperature, humidity and airflow to adapt to varying climates and raw-material properties. Production capacities are configurable to project needs.

Production Process

• 01 · Raw Material Feeding — Semolina or flour is automatically fed from the silo to the line.
• 02 · Dosing and Mixing — Precision dosing units ensure consistent flour and water ratios for homogeneous dough.
• 03 · Vacuum Extrusion Press — Dough is extruded under controlled vacuum to eliminate air and ensure uniform structure.
• 04 · Spreading (Hanging) — Extruded strands are evenly placed on drying sticks at controlled lengths.
• 05 · Pre-Cutting — Synchronized automatic knife system cuts product to stick length.
• 06 · Pre-Drying — Rapid surface moisture removal stabilizes product shape prior to main drying.
• 07 · Main Drying Tunnel — Multi-stage tunnel provides zonal temperature, humidity and airflow control for uniform drying.
• 08 · Stabilization — Internal moisture redistribution and stress relief prevent glassy brittleness.
• 09 · Cooling — Controlled cooling section reduces product temperature gradually before handling.
• 10 · Silo / Stick Holding Area — Temporary storage decouples production from packaging operations.
• 11 · Final Cutting — Synchronized final cutting unit prepares the finished product length for packaging.
• 12 · Packaging (optional) — Optional full integration with horizontal flow-pack or other packaging systems.
• 13 · Complete Line — End-to-end PLC-controlled long-cut pasta line from raw feeding to packaging.

Technical Details
Capacity options — 500 kg/h; 1,000 kg/h; 1,500 kg/h; 2,000 kg/h; 3,000 kg/h; 4,000 kg/h.
Cutting length — 23–26 cm in the final package (adjustable to customer requirements).
Products — Spaghetti, linguine and similar long-cut shapes.
Automation — PLC-based fully automatic production with multi-level drying control.
Operation — Designed for 24/7 continuous industrial operation.
Raw material — Semolina or flour-based formulations; process configurable for raw material properties.
Warranty — 24-month standard warranty.

Technical Specifications

• Standard capacity options: 500; 1,000; 1,500; 2,000; 3,000; 4,000 kg/h.
• Final cutting length: 23–26 cm (adjustable).
• Suitable products: Spaghetti, linguine and similar long-cut shapes.
• Automation: PLC-based control managing dosing, extrusion, cutting, conveying and multi-level drying.
• Operation mode: Designed for 24/7 continuous industrial operation.
• Raw materials: Semolina or flour-based formulations; process configurable for raw material properties.
• Drying: Multi-stage tunnel with zonal temperature, humidity and airflow control; independent control per drying phase.
• Line scope: From raw material feeding, dosing and mixing, vacuum extrusion, forming/cutting, pre-drying, main drying, stabilization, cooling, holding, final cutting to optional packaging integration.
• Warranty: 24-month standard warranty.
