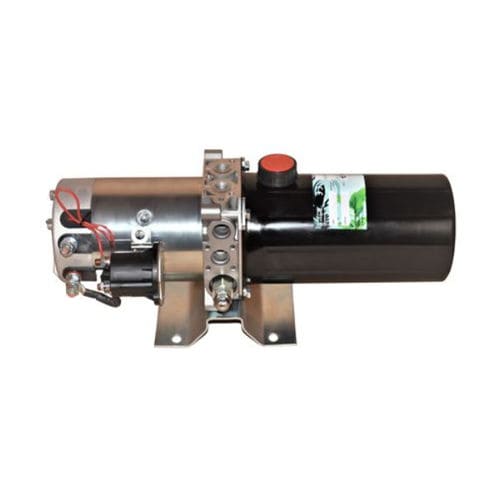

Electrically-powered hydraulic power unit MPP-38

for mobile machinescompactmobile

Product Description The MPP-38 Mini Power Pack is a powerful and compact hydraulic unit designed for mobile applications such as snowplows. It features a compact design and includes one solenoid valve for the up/down movement of the blade, which can provide a float position via a 2/2 BLPV block when needed. Additionally, there is one solenoid valve for the left/right movement of the blade. A double overcenter valve is included to protect the system if the blade hits an obstacle. With a 3 kW electric motor and an efficient 2.1 cc/rev gear pump, it delivers a flow of 6.7 L/min at 220 bar. The horizontal oil tank has a capacity of 8 litres and is designed for easy installation and use. Technical Specifications Electric motor: 3 kW, 24 V DC Pump: Gear pump, 2.1 cc/rev Maximum pressure: 220 bar Flow rate: 6.7 L/min Oil tank: 8 litres, horizontal Hydraulic connections: A, B = G 3/8” BSP P, T = G 1/4” BSP Valves: NG06 standard valves Included: Double-acting function Cartridge valve Thermal protection Relay Mounting bracket (foot bracket) CE declaration of conformity Contact Do you have questions about the MPP-38 Mini Power Pack or need a customized hydraulic solution? Taon Hydraulik is happy to provide guidance and customization to ensure you get the solution that meets your exact needs. Phone: +45 24 48 84 80 Email: [email protected]
