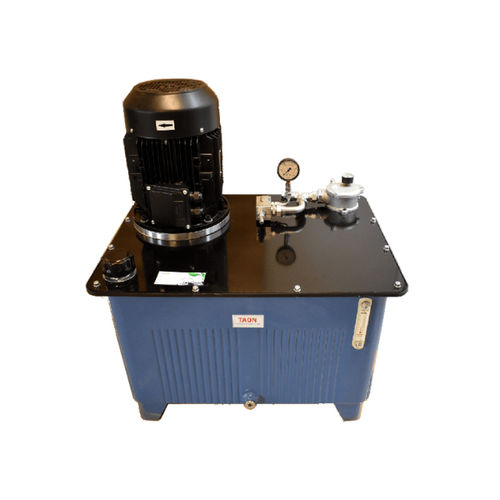

Electrically-powered hydraulic power unit HPU-18

for machinesfor toolsmulti-use

Product Description HPU‑18 is a powerful hydraulic power unit designed for industrial systems where high performance and stable operation are required. The unit features a 30 kW electric motor and a 60 cc/rev pump, providing an impressive flow of 85 liters per minute at a maximum pressure of 200 bar. The spacious 250‑liter tank and efficient filtration system make the HPU‑18 an ideal choice for demanding hydraulic applications. Technical Specifications Electric motor power: 30 kW Voltage: 400/690 V AC, 3‑phase Pump displacement: 60 cc/rev Maximum pressure: 200 bar Flowrate: 85 liters per minute Oil tank capacity: 250 liters Oil tank type: Square tank Return filter: 10 µm Hydraulic circuit P (pressure): 3/4” Hydraulic circuit T (tank): 3/4” Additional features: Oil level indicator and drain plug Dimensions (Length): 902 mm Dimensions (Width): 662 mm Dimensions (Height): 1317 mm Tank diameter: Ø 381 mm Contact Taon Hydraulik If you have any questions about the HPU‑18 or need a customized hydraulic solution, Taon Hydraulik is ready to assist. Please contact us by phone at +45 24488480 or by email at [email protected]. We look forward to finding the best solution for your needs.
