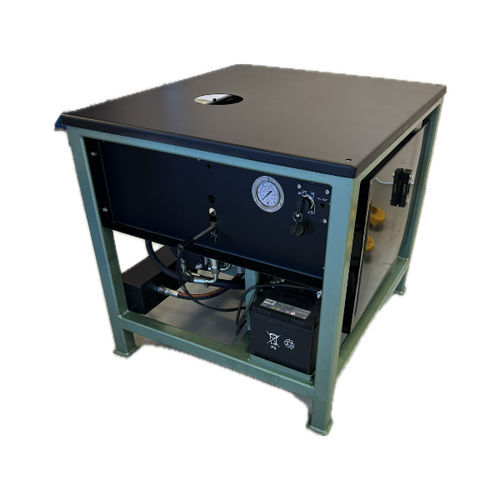

Diesel engine hydraulic power unit DP22-04

multi-usefor industrial applicationscompact

Product Description Powerful diesel-driven hydraulic power unit – ideal for operating various types of hydraulic equipment, including lifting gear, tools, and machinery. The station is compact yet built to deliver high performance with up to 180 bar and 60 l/min flow. Hydraulic power unit with GR 2 gear pump. Components 2-cylinder diesel engine with electric start Gear pump (19 cc) 80-litre steel tank Double-acting control valve Quick couplings All necessary connections and fittings Technical Description Engine type: 2-cylinder, 4-stroke diesel engine with electric start Max. power: 15 kW (approx. 20 HP) Pump: GR 2 gear pump – 19 cc Max. pressure (continuous): 180 bar Max. flow: 60 l/min Hydraulic tank: 80 litres (steel) Valve: Double-acting control valve Starting system: Electric start Configuration options: The Diesel HPU can be configured to the desired maximum flow and oil pressure. It is also possible to customize the Diesel Power Pack with a larger tank, Load Sensing valves, high-pressure filter, and more. Feel free to contact us for more information: Phone: +45 24488480 Email: [email protected]
