Gasoline engine hydraulic power unit BP13-03

gas enginemulti-usefor industrial applications

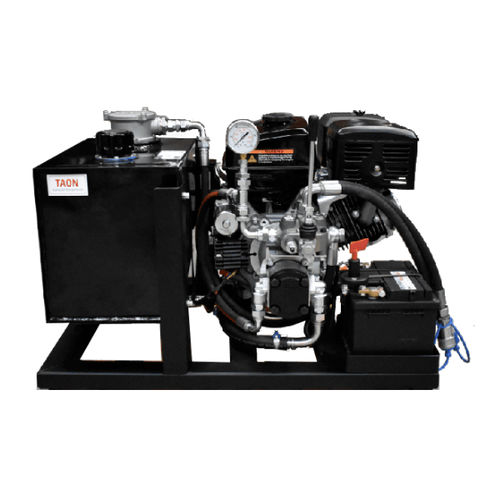

Product Description BP13‑03 is a stationary hydraulic power unit with a gasoline engine, ideal for applications without access to electrical power. The unit features a 13 HP gasoline engine, a 6.3 cc/rev gear pump, and a 30‑liter square oil tank. With a maximum output of 22 liters per minute at 200 bar pressure, the BP13‑03 provides stable and efficient hydraulic operation for a wide range of purposes. Technical Specifications Engine power: 13 HP gasoline engine Pump displacement: 6.3 cc/rev Maximum pressure: 200 bar Flow rate: 22.0 liters per minute Oil tank capacity: 30 liter square tank Return filter: 10 µm Hydraulic circuit P (pressure): 1/2″ Hydraulic circuit T (return): 1/2″ Dimensions (L × W × H): 840 × 600 × 550 mm Contact Taon Hydraulik If you have any questions about the BP13‑03 or need a customized hydraulic solution, Taon Hydraulik is ready to assist. Please contact us by phone at +45 24488480 or by email at [email protected]. We look forward to finding the best solution for your needs.
